제품 상세 정보:
결제 및 배송 조건:
|
| Product name: | Ethernet Gigabit Media Converter | Power supply: | DC 5V (Type C) |
|---|---|---|---|
| Dimension: | 62 x 44 x 18 mm | Port: | SC Fiber Port;RJ45 port |
| Conversion Means: | Media Conversion | Power: | 3W |
Overview
This high-performance media converter fiber networks, converting 10/100/1000Base-T electrical signals
to 100/1000Base-SX/LX optical signals. Compliant with IEEE 802.3/u/z/ab standards,

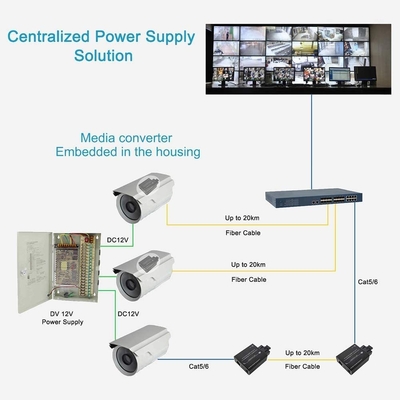

it extends transmission distances from 100m (copper) up to 20km (120km max with fiber).
Key Features:

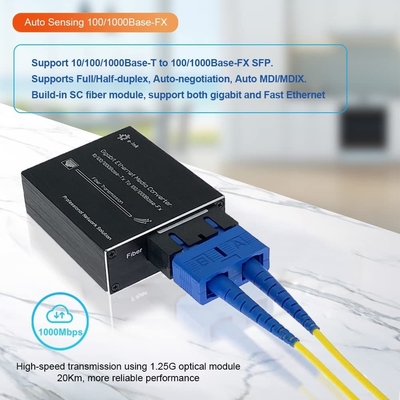

✔ Dual-Mode SFP Port – Supports both 100Mbps and 1000Mbps fiber (auto-detection)

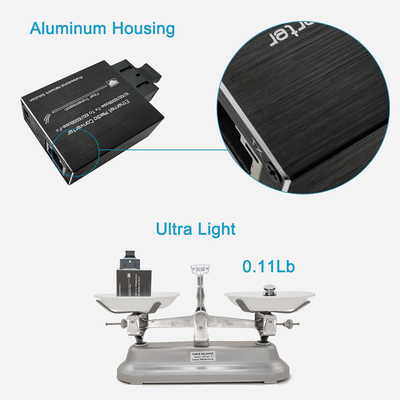

✔ Ultra-Compact Design – Space-saving, lightweight, and easy to integrate
✔ Flexible Fiber Options – Multi-mode/Single-mode (dual/single fiber)
✔ Extended Reach – 20km standard (up to 120km with single-mode fiber)
✔ Broad Compatibility – Works with existing 10/100/1000Mbps Ethernet devices
Technical Indexes
| Parameter | Specifications |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Fiber Port |

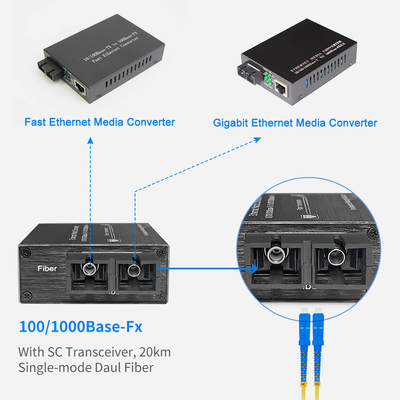

1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
| Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
| Conversion means | Media conversion |
| LFP | Not Support |
| BER | <10-9 |
| MTBF | 100,000 hours |
| LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
| Power supply | DC 5V (Type-C) |
| Power consumption | 3W |
| Operating temperature | 0~45ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions (W x D x H) | 62x 44 x 18 mm |
Ordering Information
|
||||||||||||
Features
Overview
