| 기준: | IEEE802.3af/at | 입력 전원: | 48-57VDC (2핀 커넥터) 또는 PoE |
|---|---|---|---|
| 맥스. 항구 당 전원: | 25.5W 최대 RX/30W 최대 TX | 차원 (W x D x H): | 95 × 67 × 30 mm |
| 무게: | 0.25 킬로그램 | 케이스: | 알루미늄 케이스 |
| 강조하다: | Ethernet over Coax Cable EOC Converter,EOC Converter 10/100Mbps,LNK-DEC110P EOC Converter |
||
Ethernet over Coax Extenders Overview

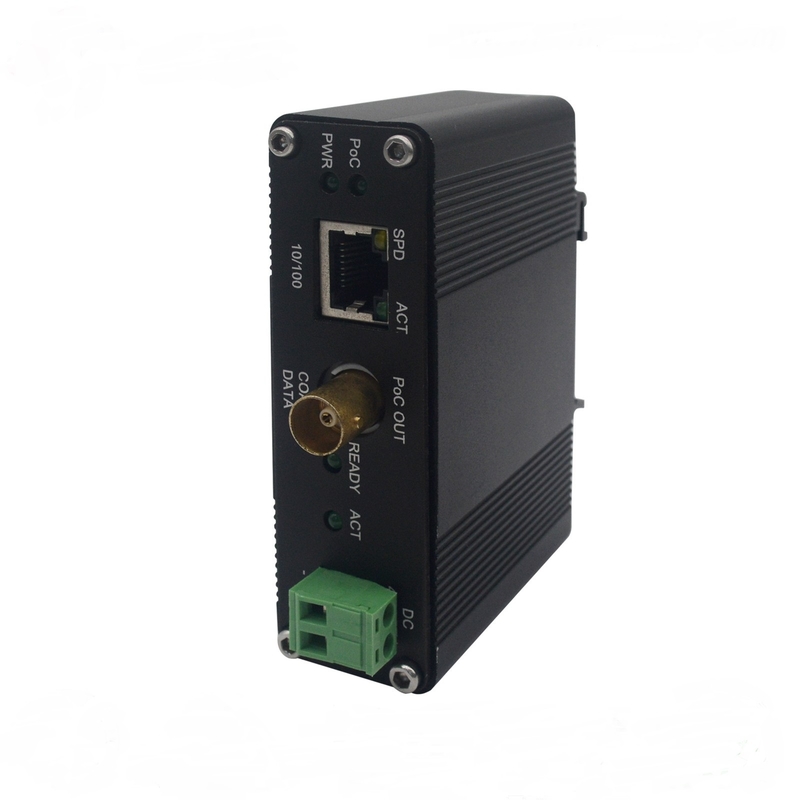

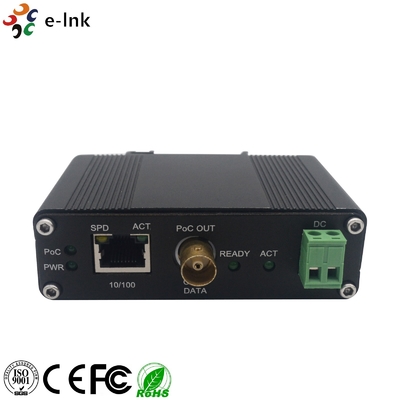

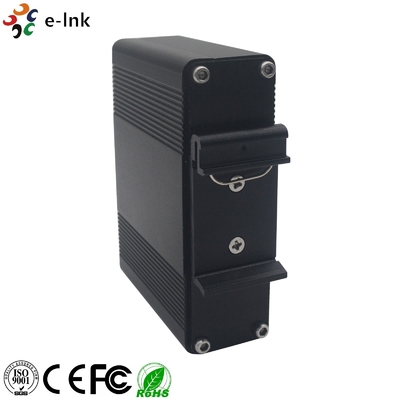

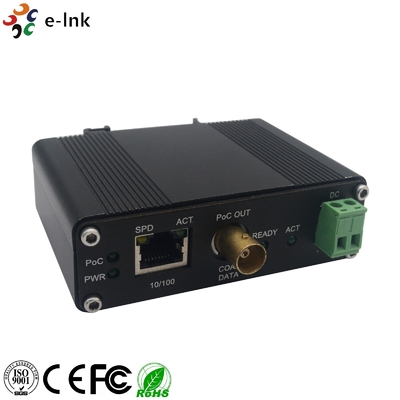

The LNK-DEC110P series DIN-rail-mounted EOC device extends a single 10/100Base-TX Ethernet
signal over coaxial cable, with a maximum transmission distance of 1 km. It also provides high-power
PoE output (up to 30W), enabling direct power supply to network cameras. This PoC technology eliminates
the need for additional power at the transmitter or camera end, making it ideal for network-based retrofitting
of analog systems using existing coaxial cable. It is widely used in CCTV surveillance and remote network expansion.
Ethernet over Coax Extenders Features
Ethernet over Coax Extenders Technical Indexes
| Ethernet | |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX | |
| IEEE802.3af Power Over Ethernet | |
| IEEE802.3at Power Over Ethernet | |
| Cabling | 10Base-T: Cat 3,4,5, or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5UTP up to 100m |
| Connector | 1 x RJ45 |
| Coaxial | |
| Cabling | Coaxial Cable (75 ohm) |
| Connector | 1 BNC (female) |
| Distance | Up to 1Km on RG-59/U |
| Data Rate | |
| Downlink (TX to RX) | 90Mbps (Max.) |
| Uplink (RX to TX) | 90Mbps (Max.) |
| Technology | Power Line Communication (PLC) |
| Protection | |
| Reverse Polarity | Present |
| Electrical and Mechanical | |
| Input Power | 48-57VDC (2 pin connector) or PoE |
| Power Consumption | 8W Max. (PoC not in use) |
| 60W Max. (Poc in use) | |
| LED Indicators | |
| Power | Power Status |
| Coax | LINK(Transmitter) / Ready(Reveiver) / PoC(Receiver), Activity |
| Ethernet | SPD, LINK/ACT, PoE(Transmitter) |
| PoE | |
| Standard | IEEE802.3af/at |
| Mode | B Mode |
| Port | RJ45 |
| Max. Power Per Port | 25.5W max.at RX(Powered Device) |
| 30W Max.at TX(Power Souring Equipment) | |
| Mode | Positive(VCC+): RJ45 Pin 4,5 |
| Negative(VCC-):RJ45 Pin 7,8 | |

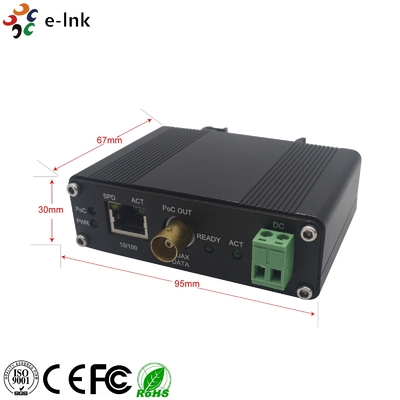

| Dimensions (W x D x H) | 95 × 67 × 30 mm |
| Weight | 0.25kg |
| Casing | Aluminum case |
| Environmental | |
| Operation Temperature | -10˚C to 60˚C (14˚F to 140˚F) |
| Storage Temperature | -40˚C to 85˚C (-40˚F to 185˚F) |
| Relative Humidity | 5% to 90% non-condensing |
| MTBF | > 100,000 hrs |
| Regulatory Approvals |
ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V |
Ethernet over Coax Extenders Ordering Information
| Model | Description |
| LNK-DEC110P-T | DIN-Rail Transmitter of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC |
| LNK-DEC110P-R | DIN-Rail Receiver of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC |
Ethernet over Coax Extenders Application
