| Connector: | 8 x RJ45 | Optical Port: | 4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|---|---|---|---|
| 작동 온도: | -40 ° C ~ 80 ° C (-40 ° F ~ 176 ° F) | 입력 전원: | 48 ~ 57VDC, 중복 전력 (6 핀 터미널 블록) |
| 치수 (WXDXH): | 149 Ｘ 114 Ｘ 50 밀리미터 | 장착 옵션: | Din-Rail 마운트 |
| 강조하다: | 802.3at Industrial Ethernet Switch,10/100/1000T Industrial Ethernet Switch |
||
Overview

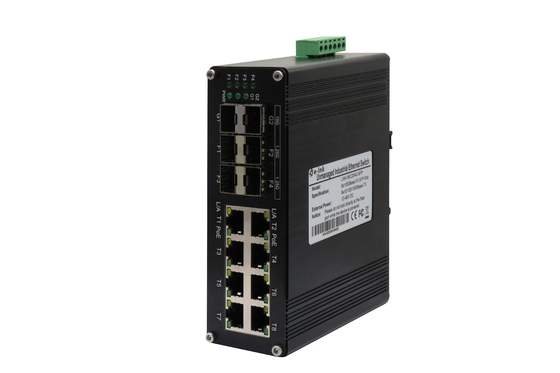

The LNK-IMC2X4S8GP Series is a hardened industrial Ethernet switch designed for high-performance
and versatile connectivity in demanding environments. It combines 8 PoE+ ports (10/100/1000Base-T,
IEEE 802.3at) with 4 SFP ports (1000Base-X) and 2 SFP+ ports (10G Base-SR/LR) to support a mix of
copper and fiber connections. The switch offers 8 RJ45 ports for standard Ethernet devices (auto
MDI/MDI-X, Full/Half duplex) and 6 fiber ports (1000Base-X and 10G SFP+), compatible with single-mode
or multi-mode fibers (1 or 2 core). This configuration enables seamless integration of IP cameras, wireless
access points, and other network devices across remote locations, leveraging both gigabit and 10G speeds.
Its managed features and rugged design ensure reliable operation in industrial settings, making it an optimal
solution for scalable, resilient networks requiring centralized power distribution and long-distance fiber
connectivity.
Features
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant

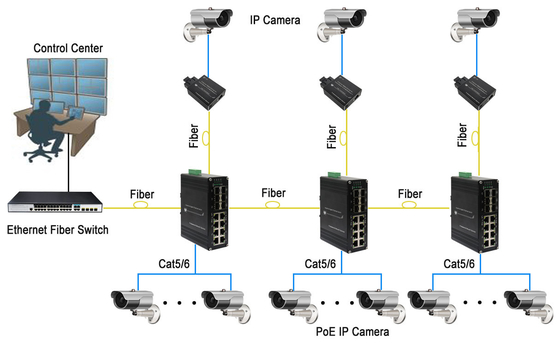

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3ae 10GBase-R | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| 1,488,000,000pps (10000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 4 x 1000Base-X SFP |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max.(PoE in Use<240W) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

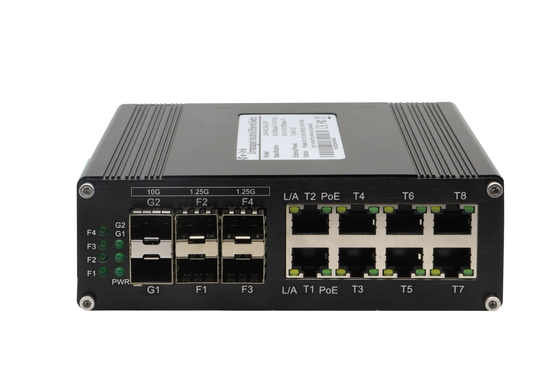

| LED Indicators: | |
| Power: | Power Status |
| Ethernet(Per Port): | Link/Activity |
| PoE (Optional) | PoE Status |
| Fiber: | Gigabit SFP Port: F1~F4 |
| 10G SFP+ Port: G1, G2 | |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |

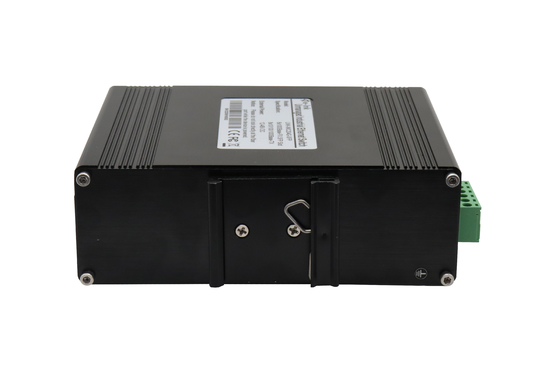

| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC2X4S8GP | Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
