| Connector: | 8 x RJ45 | 광학 포트: | 1000Base-X SFP 6개 |
|---|---|---|---|
| 작동 온도: | -40 ° C ~ 80 ° C (-40 ° F ~ 176 ° F) | Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Dimensions (WxDxH): | 149 x 114 x 50 mm | Mounting Options: | DIN-Rail mount |
| 강조하다: | 802.3at PoE Ethernet Switch,8-Port PoE Ethernet Switch,Hardened PoE Ethernet Switch |
||
Overview

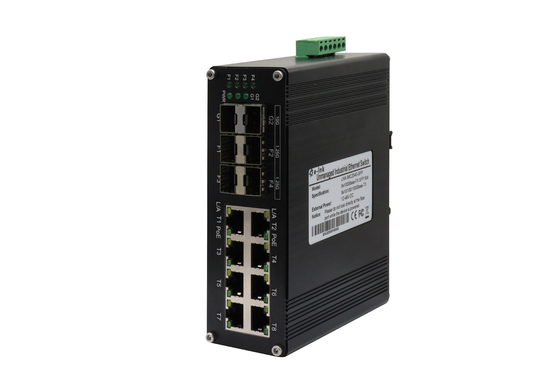

The LNK-IMC608GP-SFP Series is a hardened industrial Ethernet switch designed for resilient and
versatile connectivity in demanding environments. It features 8 PoE+ ports (10/100/1000Base-T, IEEE
802.3at) and 6 SFP ports (1000Base-X), combining copper and fiber connectivity options. The switch
offers 8 RJ45 ports for standard Ethernet devices (auto MDI/MDI-X, Full/Half duplex) and 6 fiber ports
(1000Base-X) compatible with single-mode or multi-mode fibers (1 or 2 core). This configuration enables
seamless integration of IP cameras, wireless access points, and other network devices across remote
locations, leveraging gigabit speeds and centralized power distribution. Its hardened design and managed
capabilities ensure reliable performance and simplified deployment, making it an optimal solution for
industrial networks requiring scalable, secure connections between distributed devices.
Features
► IEEE802.3af/at compliant
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8x10/100/1000Base-T + 6x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

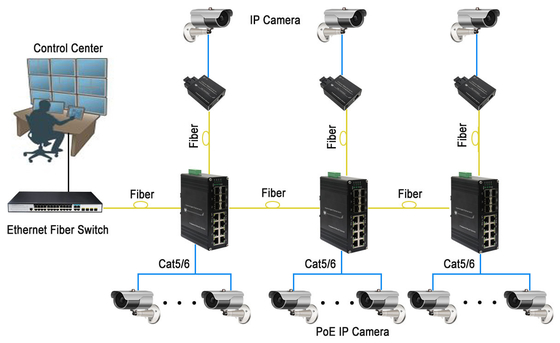

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 6 x 1000Base-X SFP |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max.(PoE in Use<240W) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

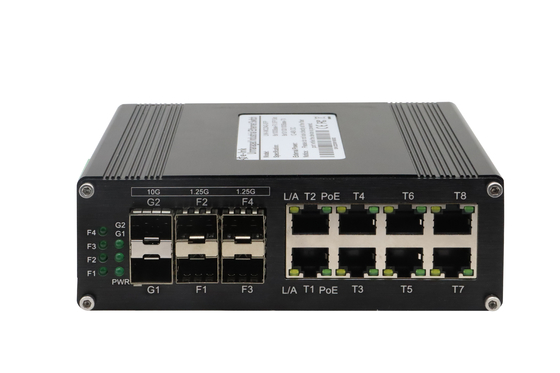

| LED Indicators: | |
| Power: | Power Status |
| Ethernet(Per Port): | Link/Activity |
| PoE (Optional) | PoE Status |
| Fiber: | Gigabit SFP Port: F1~F6 |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |

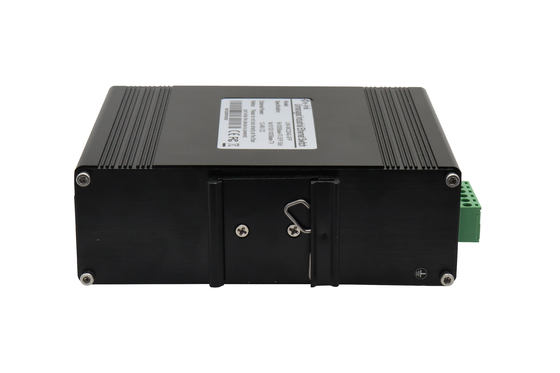

| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC608GP-SFP | Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
