제품 상세 정보:
결제 및 배송 조건:
|
| 커넥터: | 8 Ｘ RJ45 | Optical Port: | 6 x 1000Base-X SFP |
|---|---|---|---|
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | 치수 (WXDXH): | 149 Ｘ 114 Ｘ 50 밀리미터 |
| Weight: | 0.55Kg | 케이싱: | 알루미늄 케이스 |
| 강조하다: | Industrial 6-Port Ethernet Switch,Industrial 8-Port Ethernet Switch,Industrial Hardened Ethernet Switch |
||
Overview

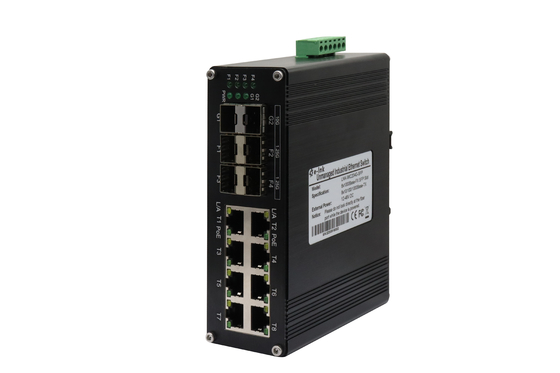

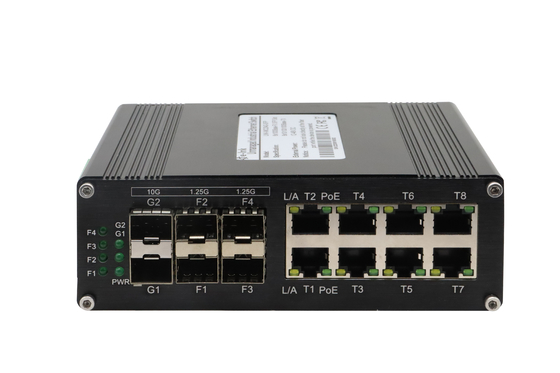

The LNK-IMC608G-SFP Series is a hardened industrial Ethernet switch engineered for reliable and
flexible network connectivity in challenging environments. It features 8 10/100/1000Base-T RJ45
ports for standard Ethernet devices and 6 1000Base-X SFP ports for fiber connections, enabling a
mix of copper and fiber deployments. The switch offers 8 TP (RJ45) ports with auto MDI/MDI-X and
Full/Half duplex mode, alongside 6 fiber ports (1000Base-X) capable of single-mode or multi-mode
fiber deployment (1 or 2 core). This design allows seamless integration of devices like IP cameras
and wireless access points across remote locations, leveraging gigabit speeds and long-distance fiber
links. Its hardened construction and managed capabilities ensure stable performance and easy
deployment, making it an ideal choice for industrial networks requiring scalable, secure connectivity
between distributed devices.
Features
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case

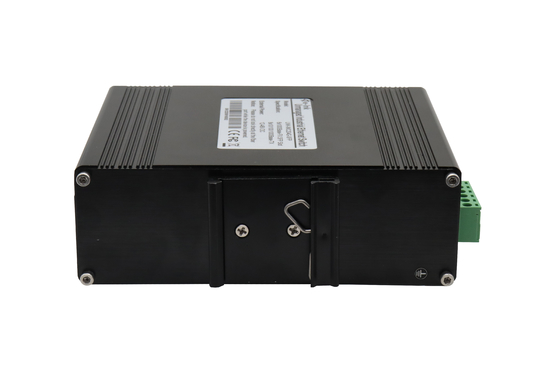

► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► 8x10/100/1000Base-T + 6x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

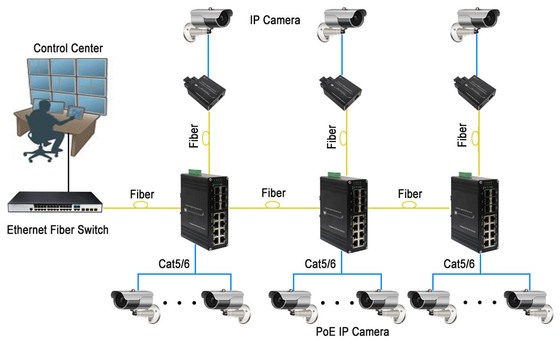

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 6 x 1000Base-X SFP |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F1~F6 |
| Dimensions (WxDxH): | 149 x 114 x 50 mm |
| Weight: | 0.55Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
| Model | Description |
| LNK-IMC608G-SFP | Industrial 8-Port 10/100/1000T + 6-Port 1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
