| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | Dimensions (WxDxH): | 95 x 70 x 30 mm |
|---|---|---|---|
| 무게: | 0.25kg | 전달 모드: | 스토어 엔드 포월드 |
| 전송거리: | 100m | Mounting Options: | DIN-Rail / Wall-mount |
| 강조하다: | 200m Gigabit POE Extender,1-In 4-Out Gigabit PoE Extender,Gigabit PoE Extender |
||
Industrial PoE Extender Overview
The LNK-IPE104-30 is an industrial-grade, 1-input, 4-output PoE extender designed for
point- to-multipoint PoE applications . It draws up to 30W of power from one 802.3at PoE+ input port
and provides a total of 25W of PoE power to four PoE output ports . This device extends
the Gigabit Ethernet data and PoE power range from the standard 100 meters to 200 meters ,
and can simultaneously power up to four powered devices (PDs) such as network cameras
and wireless access points. Requiring no external power supply, the LNK-IPE104-30 supports
plug-and-play operation, easily expanding the number of PoE ports and reducing cabling costs.
It is suitable for a variety of scenarios, including security surveillance, wireless network coverage,
and industrial automation.
Industrial PoE Extender Features
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices

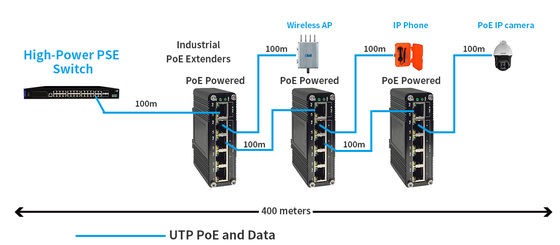

► Extends an additional 100m for PoE network. Daisy chain support connection up
to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

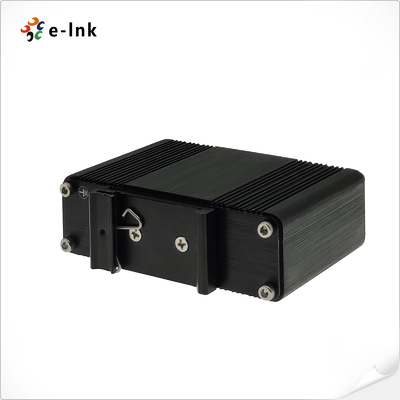

► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

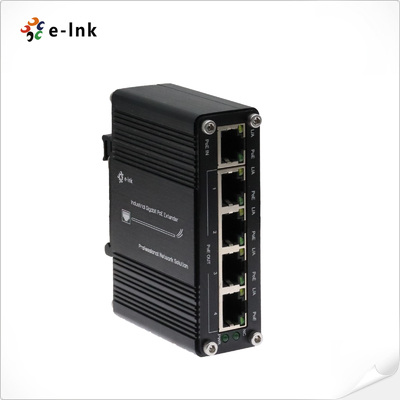

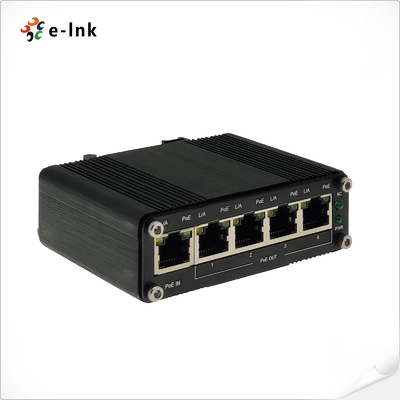

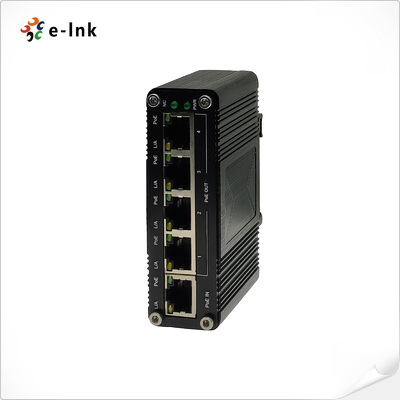

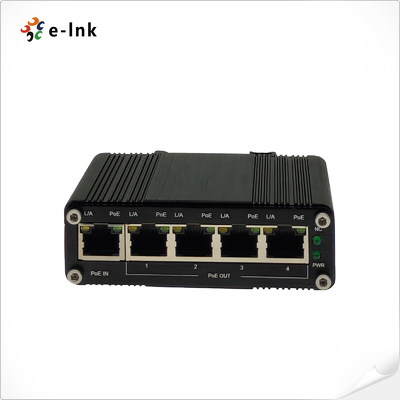

Industrial PoE Extender Panel
Industrial PoE Extender Technical Indexes
| Ethernet Port | |
| PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W |
| PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m |
| Cascade connection | Support 3 grade |
| Power over Ethernet | |
| PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-),4/5(+), 7/8(-) |
| Switch Property | |
| Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
| Forwarding Modes | Store and Forward |
| Transmission Distance | 100m |
| MAC Table | 8K |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Environment | |
| Surge Immunity | 6KV, Standard: IEC6000-4-5 |
| ESD Protection |
6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
| Protection Level | IP 40 |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 0~95% (non-condensing) |
| Physical Parameter | |
| Dimensions (WxDxH) | 95 x 70 x 30 mm |
| Weight | 0.25Kg |
| Casing | Aluminum Case |
| Mounting Options | DIN-Rail / Wall-mount |
| Certifications | |
| Certifications | CE, FCC, RoHS |
Industrial PoE Extender Ordering Information
| Model | Description |
| LNK-IPE104-30 | Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
