제품 상세 정보:
결제 및 배송 조건:
|
| 입력 전원: | 12-48V DC (터미널 블록) | 최대 전력 소비: | 70W |
|---|---|---|---|
| 포 전원 출력: | 포트당 최대 60W (대안 B 모드) | 작동 온도: | -40 ° C ~ 80 ° C (-40 ° F ~ 176 ° F) |
| 서지 보호: | RJ45 포트의 경우 1kv, 전력 입력의 경우 500W | 치수: | 95 x 70 x 30 mm, 무게 0.26 kg |
| 강조하다: | 2-Port Gigabit PoE Injector,High Power Industrial PoE Injector,Industrial PoE Injector |
||

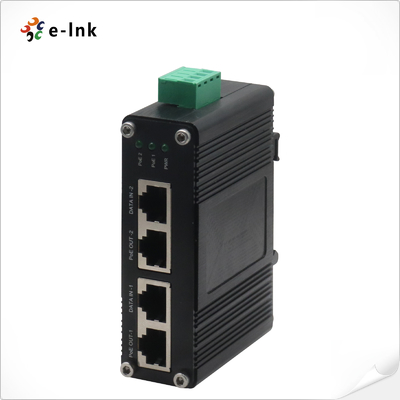

Hardened 2-Port Gigabit High Power PoE Injector for Industrial Use
Overview
The LNK-INJ302 is a ruggedized 2-port Gigabit High Power PoE Injector designed to
connect IEEE 802.3af/at PoE devices, such as cameras and access points, to a non-PoE
LAN switch within a 100-meter range. Both the Ethernet port (for connecting to the switch)
and the PoE output port (for powering PoE devices) support 10/100/1000Base-T and comply
with IEEE 802.3ab and 802.3at standards. This injector provides a versatile power solution,
offering a wide input voltage range of 12-48VDC, making it ideal for high-availability industrial
applications.
Features
12~48VDC power supply input
2 RJ45 Ethernet data input ports + 2 RJ45 Power over Ethernet (PoE) output ports
(Data + Power)
Compliant with IEEE802.3at PoE+ Power Sourcing Equipment
Up to 60W PoE per port, with a total PoE output of less than 60W
Supports 10/100/1000Base-TX Ethernet speeds
Compatible with both DIN rail and wall-mount installation options
Includes multiple LED indicators for PoE status monitoring
Built for harsh environments with an operating temperature range of -40°C to 80°C (-40°F
to 176°F)
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
4x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
70W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
60W Max (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.26Kg |
|
Casing: |
Aluminum Case |
|

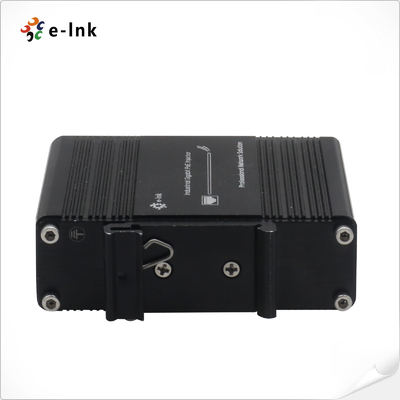

Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
CE-EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ302 |
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
Application
