| Product Name: | Industrial Ethernet Media Converter | 광학 포트: | 1개 Ｘ SC 1000Base-X |
|---|---|---|---|
| 전력 소비: | 최대 5W | 입력 전원: | 2개의 핀 단자 블록인 12~48VDC |
| 치수 (WXDXH): | 95 x 70 x 30 mm | Weight: | 0.25Kg |
| 장착 옵션: | Din-Rail / Wall-Mount | 케이싱: | 알루미늄 케이스 |
| 강조하다: | 10/100/1000BASE-T SFP Fiber Converter,Industrial Networks SFP Fiber Converter,1000BASE-T Ethernet Fiber Converter |
||

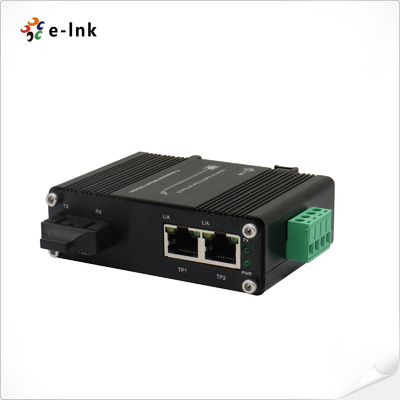

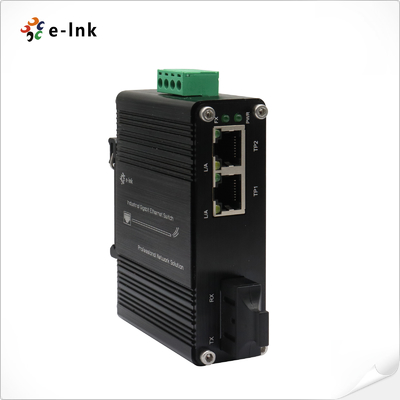

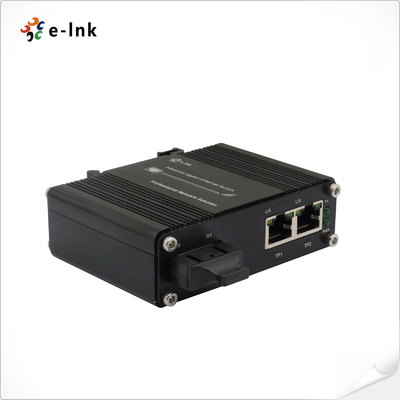

Mini Industrial 2-Port 10/100/1000Base-TX to 1000Base-X Media Converter
Mini Industrial Media Converter Overview
The LNK-IMC1200G Series Industrial Gigabit Media Converter is a device that allows you to connect two Ethernet ports (10/100/1000BASE-T) and one fibre port (1000BASE-X) together. It is made for tough industrial environments, with a strong aluminium case, and works well in a wide range of temperatures from -40°C to +75°C.This hardened converter supports both half-duplex and full-duplex modes, ensuring high-performance, stable network connectivity. Its strong hardware can handle tough conditions, making it great for industrial automation, transportation, and outdoor use. Installation is made easier with options to attach it to a DIN rail or a distribution box, making it useful in different situations.
Mini Industrial Media Converter Features
High-performance dual-mode Gigabit network port
• 2×RJ45 10/100/1000M auto-negotiating ports | Automatic MDI/MDI-X polarity detection | Full/half-duplex mode auto-negotiation
• 1×SC fibre Gigabit port (1000Base-X) | Stable long-distance transmission
Industrial-grade reliable design
• Wide temperature operating range: -40°C to 75°C (-40°F to 167°F) | Dust and moisture resistant | Suitable for harsh environments
• Dual mounting options: DIN rail/wall mounting | Compact and robust structure
Energy-saving and intelligent management
• IEEE 802.3az Energy Efficient Ethernet (EEE) technology | Low-power design
• Wide voltage input: 12–48 VDC power supply | Industrial power supply compatibility
Mini Industrial Media Converter Technical Indexe
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3z 1000Base-X |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SC 1000Base-X |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
SPD: |
Ethernet Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Mini Industrial Media Converter Ordering Information
|
Model |
Description |
|
LNK-IMC1200G |
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Multimode, 850nm, 550m |
|
LNK-IMC1200G-20 |
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, 1310nm, 20km |
|
LNK-IMC1200G-S20 |
Mini Industrial Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T, SC Fiber Port, Single Mode, Single Fiber, 1310/1550nm, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
Mini Industrial Media Converter Application
