제품 상세 정보:
결제 및 배송 조건:
|
| PoE 입력 포트: | 10/100/1000Base-TX RJ45, IEEE 802.3AT POE 입력 (50 ~ 57V DC, MAX 30W) | 포 출력 전원: | 최대 25.5W (최대 101m); 200m에서 20W |
|---|---|---|---|
| POE 표준이 지원됩니다: | IEEE 802.3AF/AT POWER OVER ETHERNET, MID-SPAN & END-SPAN | 스위칭 용량: | 8K MAC 테이블 및 14.88MPPS 패킷 전달 속도가 포함 된 10Gbps, |
| ESD 보호: | 6KV 접촉 방전, 8KV 공기 방전 (IEC61000-4-2 레벨 3) | 환경 보호: | -40 ° C ~ 80 ° C 용으로 설계된 IP40 등급 알루미늄 케이스 |
| 강조하다: | 1 Port PoE+ Gigabit Extender,IP40 PoE+ Gigabit Extender,DIN-Rail PoE+ Gigabit Extender |
||

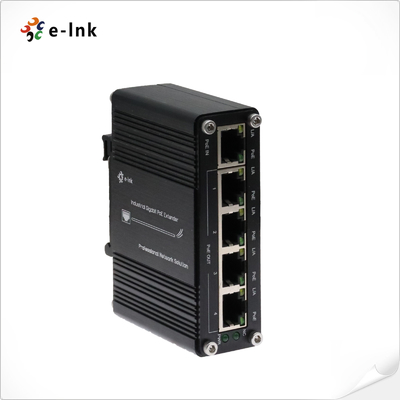

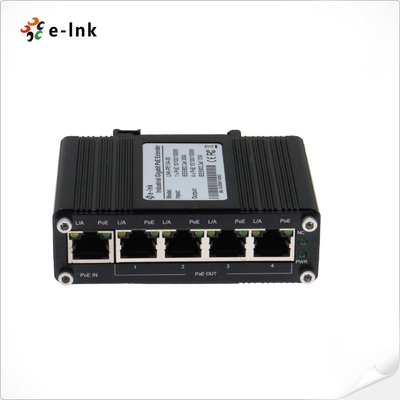

Industrial 1-Port PoE+ to 4-Port Gigabit Extender 30W IP40 DIN-Rail
Overview
The LNK-IPE104-30 is a high-performance industrial PoE+ extender designed to extend
both data and power over Ethernet. With a 1-Port 802.3at PoE+ input, it can deliver up to
25W of PoE power across 4 output ports, making it ideal for point-to-multipoint PoE
applications. This device supports up to 200m of Ethernet range, and by daisy-chaining
multiple extenders, it can achieve a total PoE+ network extension of up to 400m. With a
robust IP40-rated aluminum case and wide operating temperature range of -40°C to 80°C,
it ensures reliable performance in harsh environments. The LNK-IPE104-30 offers flexible
installation options, supporting both DIN-Rail and wall-mount setups.
Features
1-Port 802.3at PoE+ Input: Provides up to 30W power for 4 PoE output ports.
4-Port 802.3af/at PoE Output: Delivers up to 25W PoE power across four devices
simultaneously.
Extended Ethernet Range: Extends PoE and Gigabit Ethernet up to 200 meters, with the
ability to daisy chain up to 3 extenders for a total of 400 meters.
High-Speed Ethernet Ports: Supports 10/100/1000Mbps Ethernet for fast and reliable data
transmission.
IP40-Rated Aluminum Housing: Durable, industrial-grade protection for harsh environments.
Wide Operating Temperature: Works in extreme temperatures from -40°C to 80°C
(-40°F to 176°F).
Flexible Installation: Supports DIN-Rail and wall-mount installations for versatile deployment.
No External Power Adapter: Powered directly by 802.3at PoE+ source, eliminating the need
for additional power sources.
Technical Indexes
|
Ethernet Port |
|
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W |
|
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m |
|
Cascade connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
100m |
|
MAC Table |
8K |
|
Switching Capacity |
10Gbps |
|
Packet Forwarding Rate |
14.88Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Environment |
|
|
Surge Immunity |
6KV, Standard: IEC6000-4-5 |
|
ESD Protection |
6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
|
Protection Level |
IP 40 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
0~95% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|
Weight |
0.25Kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
DIN-Rail / Wall-mount |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
Ordering Information
|
Model |
Description |
|
LNK-IPE104-30 |
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender |
|
Mounting Options |
Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Application
Dimension
