E 연결 중국 기술 Co., 주식 회사.
직업적인 섬유 광 통신 및 CCTV 안전 전송 제품 제조자
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 비디오 해상도: | 최대 3840 × 2160@60Hz (YUV 4 : 2 : 0) | 전송거리: | 단일 모드 파이버보다 최대 80km |
|---|---|---|---|
| 신호 형식: | DVI 1.0, HDCP 준수 | 대역폭: | 10.2Gbps |
| 전력 소비: | <5w> | 치수: | 73x44x17mm |
| 강조하다: | Mini 4K DVI Fiber Optic Extender,DVI Fiber Optic Extender 80km |
||

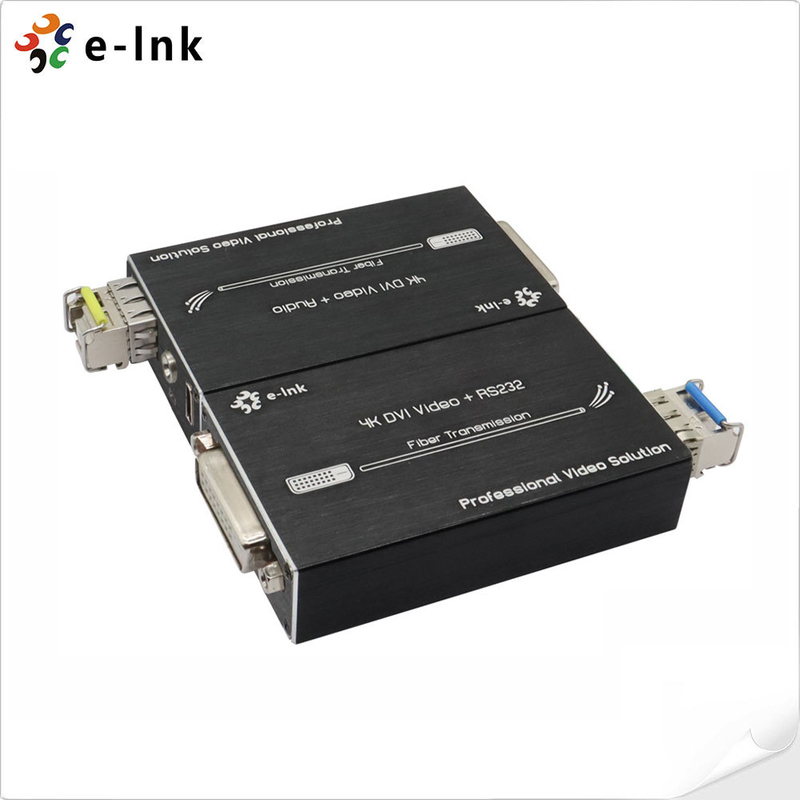

Mini 4K DVI Fiber Optic Extender with Audio Up to 80km Transmission Range
Overview
The Mini 4K DVI Fiber Optic Extender is designed for long-distance transmission of
uncompressed DVI video and stereo audio signals over optical fiber. Supporting resolutions
up to 4K×2K@60Hz with YUV 4:2:0, it ensures zero-latency and lossless performance for
professional AV applications. With a compact form factor and support for distances up to 80km
over single-mode fiber, it is ideal for large-scale displays, control rooms, conference systems,
and home theaters. This extender features HDCP compliance, plug-and-play setup, and robust
EMI/RFI resistance for stable, interference-free signal delivery.
Features
Supports uncompressed 4K×2K@60Hz DVI video transmission over fiber
Transmits DVI and stereo audio signals up to 80km (single-mode)
Compliant with DVI 1.0 and HDCP standards
Supports 3.5mm external stereo audio input/output
Plug-and-play with EDID support and zero configuration
EMI/RFI resistant for stable signal transmission
Compact mini form factor for easy installation
Data bandwidth up to 10.2Gbps
Low power consumption (<5W), powered by USB-C
Technical Indexes
|
Type of Extender |
Fiber Transmitter for DVI signal over Optical Fiber Cable |
|
Input Signals |
DVI |
|
Connector |
DVI-D |
|
Signal Support |
DVI 1.0 format standard and HDCP compliant |
|
Video Support |
Up to 720P/960P/1080p@60Hz, 4K*2K@60Hz |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Chroma Subsampling |
Max 3840*2160@60Hz (4:2:0) Max 3840*2160@30Hz (4:4:4, 4:2:2) |
|
EDID |
Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually |
|
Audio Interface |
3.5MM external stereo audio |
|
Fiber Connector |
SFP/LC |
|
Bandwidth |
10.2Gbps |
|
Transmission Distance |
300m (Over OM3 Fiber) |
|
Up to 80km (Over Single-mode Fiber) |
|
|
Operating Temperature |
-10 ~ + 50°C |
|
Storage Temperature |
-20 ~ + 80°C |
|
Humidity |
5% to 90% RH (non-condensing) |
|
MTBF |
100,000 hours |
|
Dimension (WxDxH) |
2.87 x 1.73 x 0.69in (73x44x17mm) |
|
Weight |
60g / 0.13 lb |
|
Power Supply |
5V DC (USB-C) |
|
Power dissipation |
<5W |
|
Safety Approvals |
CE, FCC, Rohs |
Ordering Information
|
Model |
Description |
|
LNK-MDA4K-MM |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK-MDA4K-S20 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK-MDA4K-S40 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |
|
LNK-MDA4K-S80 |
Mini DVI Fiber Extender: 1Ch DVI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input |

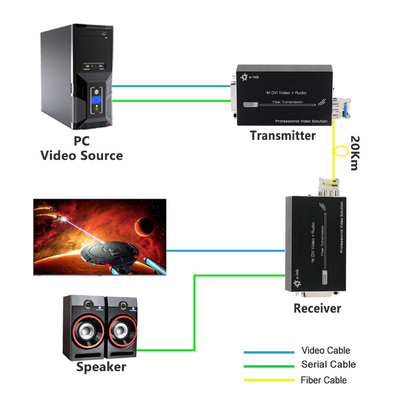

Application
Panel Information
