E 연결 중국 기술 Co., 주식 회사.
직업적인 섬유 광 통신 및 CCTV 안전 전송 제품 제조자
|
|
제품 상세 정보:
결제 및 배송 조건:
|
| 전송거리: | 최대 80km (이중/단일 섬유), 100m (CAT5) | 파장 옵션: | 850nm / 1310nm / 1550nm |
|---|---|---|---|
| 포트: | 1X RJ45 (STP/UTP CAT5), 1X 광학 포트 (SC/FC/LC/SFP) | 전력 소비: | 최대 5W |
| 작동 온도: | -10 ° C ~ 55 ° C | 치수: | 71 x 94 x 26 mm |
| 강조하다: | Multi-Mode Gigabit Ethernet Media Converter,Multi-Mode Single-Mode Media Converter,Single-Mode Gigabit Ethernet Media Converter |
||

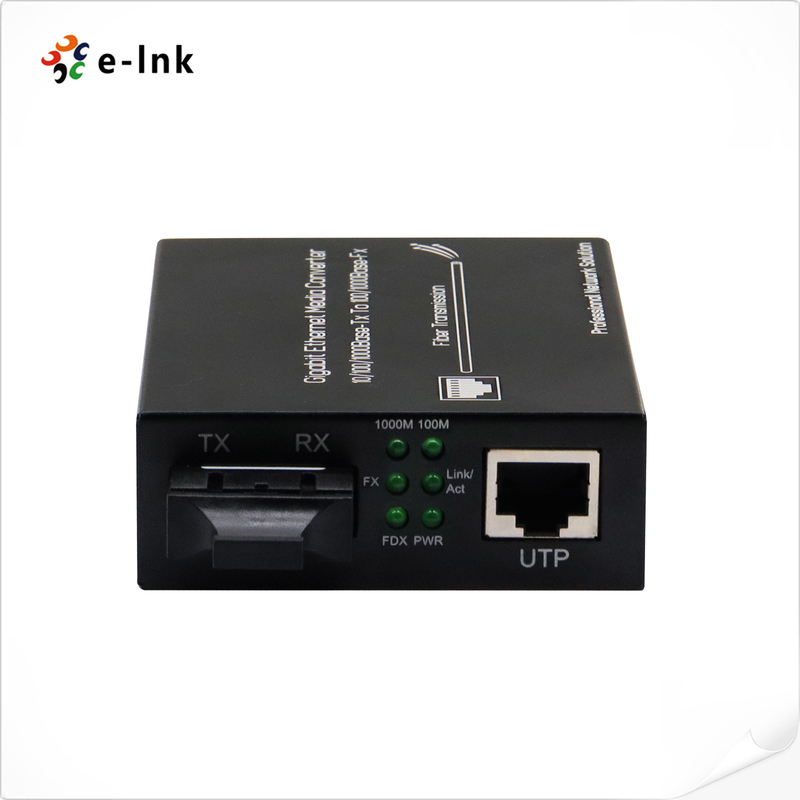

Gigabit Ethernet Media Converter with Multi-Mode and Single-Mode Fiber
Overviw
This Gigabit Ethernet media converter enables seamless conversion between
10/100/1000Base-T and 1000Base-SX/LX optical signals. Supporting both multi-mode and
single-mode fiber, it extends Ethernet transmission up to 120km. Designed for reliable,
high-speed data communication, it features auto-negotiation, full/half duplex support, and
plug-and-play installation. Ideal for telecom, enterprise, and industrial network applications.
Features
Supports 10/100/1000Mbps auto-negotiation for seamless Ethernet to fiber conversion
Compatible with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards
Available in multi-mode and single-mode, dual-fiber and single-fiber options
Transmission distance up to 120km over optical fiber
Auto MDI/MDI-X and full/half duplex support for easy deployment
Compact metal housing with low power consumption and high stability
Plug-and-play design, no configuration required
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP category-5 twisted pairs One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm) Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm) Single mode Single fiber: SC/FC/LC(SFP) (9/125μm) |
|
Conversion means |
Media conversion |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
Power supply |
DC 5V / 1A |
|
Power consumption |
5W |
|
Operating temperature |
-10~55ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions (W x D x H) |
71 x 94 x 26 mm |
Ordering Information
|
Item |
Description |
|
LNK-3011 |
10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor |
|
LNK-3011S-20 |
10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
LNK-S3011-20 |
10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor |
