제품 상세 정보:
결제 및 배송 조건:
|
| 전원 출력: | 70W 36VDC (터미널 블록) | 전력 소비: | 75W 최대 |
|---|---|---|---|
| 치수 (WXDXH): | 95 x 70 x 30 mm | 무게: | 0.25kg |
| 포장: | 알루미늄 케이스 | pwr: | 36VDC 전원 출력 |
| 강조하다: | Powerful PoE Splitter,Long Distance PoE Splitter,36V PoE Splitter |
||

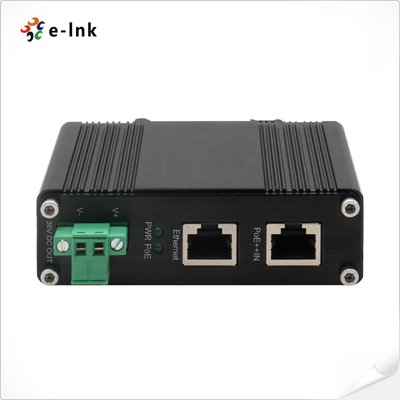

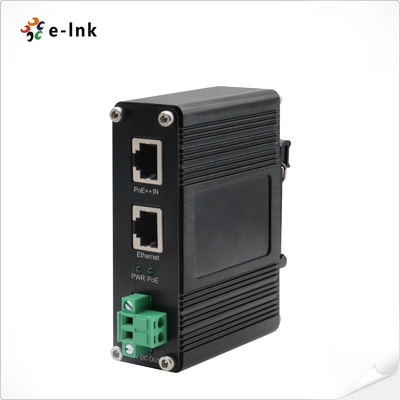

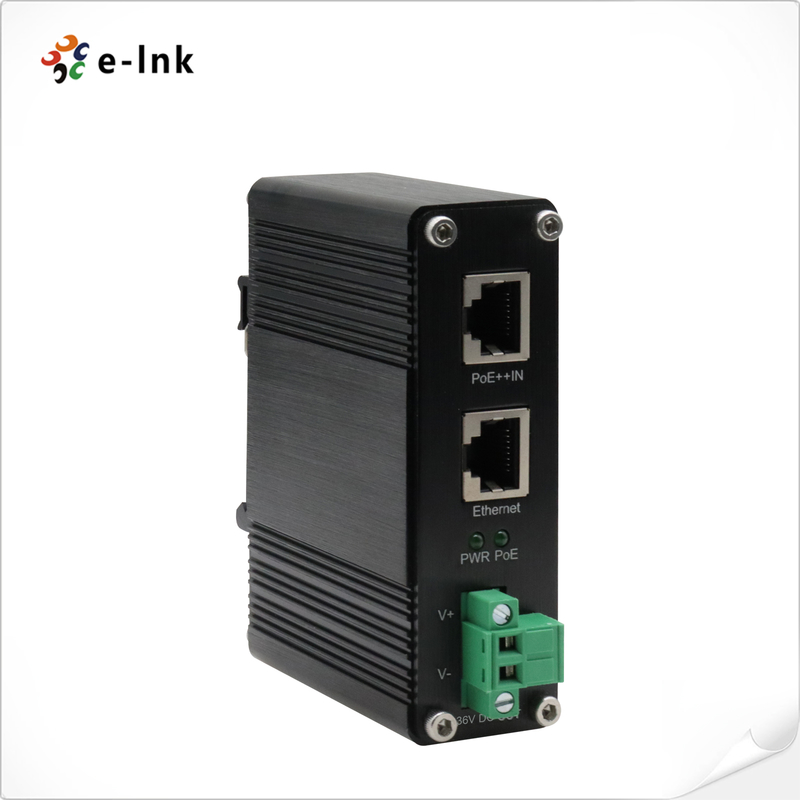

Industrial Gigabit PoE Splitter Overview
The LNK-INS901-36V series is an industrial-grade Gigabit Ethernet PoE splitter.
It transmits data via an RJ-45 Ethernet port and provides power to non-PoE devices
via screw terminals. This device is fully compliant with the IEEE802.3af/at/bt standards,
so you can use it with a standard PoE switch or the LNK-INJ-48-95W PoE injector.
It will deliver up to Gigabit data rates while simultaneously operating with 36V DC power output
over distances of up to 100 metres. Its plug-and-play design requires no additional configuration,
enabling flexible installation and is suitable for high-reliability industrial network environments,
effectively reducing cabling and power costs.
Industrial Gigabit PoE Splitter Features
Power and Data Separation – Splits electrical power and data
from a single PoE input for non-PoE devices.
PoE Input Port – One RJ-45 PoE port for combined data and power input.
Data Output Port – One RJ-45 port dedicated to high-speed data output.
36VDC Power Output – 2-pin terminal block providing stable 36VDC output.
Wide PoE Compatibility – Supports IEEE 802.3af/at/bt (PoE++).
High-Speed Networking – Supports 10/100/1000Base-T Ethernet connections.
Long-Distance Transmission – Operates up to 100 meters over Ethernet cable.
Built-in Protection – Short-circuit protection ensures safe power delivery.
Industrial-Grade Design – IP40 rugged metal housing with fanless operation.
Flexible Mounting – Supports both DIN-rail and wall-mount installation.
Status Monitoring – Multiple LED indicators for real-time PoE diagnostics.
Extreme Temperature Tolerance – Reliable operation from -40°C to +80°C.
Industrial Gigabit PoE Splitter Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (36VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
70W 36VDC (Terminal Block) |
|
Power Consumption: |
75W Max. |
|
LED Indicators: |
|
|
PWR: |
36VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
|
Model |
Description |
|
LNK-INS901-36V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 70W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|

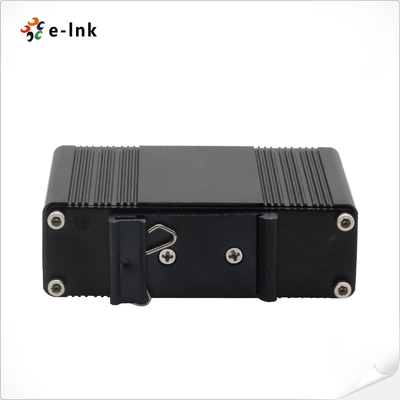

Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
