| 제품 이름: | 산업 3- 포트 10/100/1000T POE + 1 포트 100/1000X SFP 이더넷 스위치 | 커넥터: | 802.3at PoE+ 분사기 기능 (공항 1 내지 3)와 3 Ｘ RJ45 |
|---|---|---|---|
| 입력 전원: | 2개의 핀 단자 블록인 12~48VDC | 광학 포트: | 1개 Ｘ SC 1000Base-X |
| 전력 소비: | <95W(비PoE<6W) | 치수 (WXDXH): | 95 x 70 x 30 mm |
| 무게: | 0.3 킬로그램 | 케이싱: | 알루미늄 케이스 |
| 강조하다: | Gigabit Industrial Switch,Voltage Booster Gigabit Industrial Switch,4 Port Gigabit Industrial Switch |
||

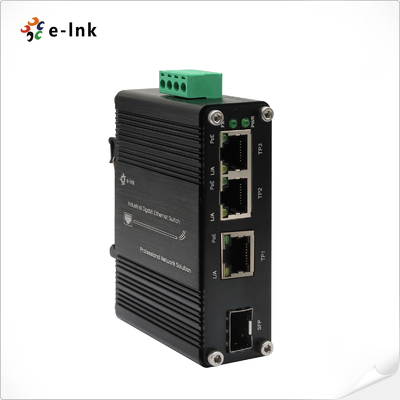

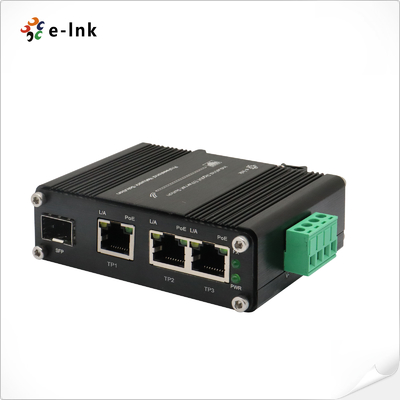

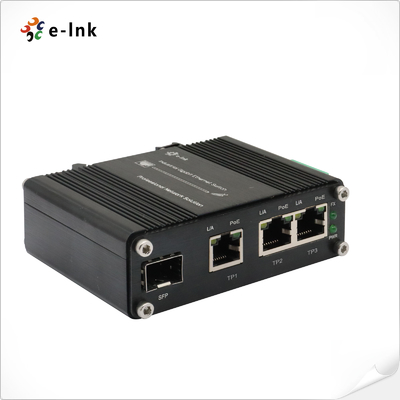

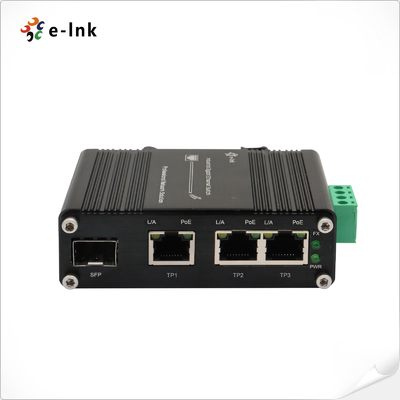

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
Mini Industrial Solar Power PoE Switch Overview
The LNK-IMC103GP-SFP Series is the compact, industrial-grade 4-port Gigabit Ethernet switch.
It features 3× 10/100/1000BASE-T PoE+ ports (802.3at, 30W each) and 1× 100/1000BASE-X SFP slot
for flexible fibre connectivity. This product is designed for harsh environments. It offers wide voltage
input (12-48 VDC) with a voltage booster. This ensures stable operation in solar power systems,
industrial automation and outdoor applications. The rugged fanless metal housing is capable
of withstanding extreme temperatures (-40°C to 75°C), vibrations and shocks while fully complying
with CE/FCC standards. Its plug-and-play operation and 100% burn-in tested reliability make it
the economical yet robust solution for industrial networking needs.
Mini Industrial Solar Power PoE Switch Features
LNK-IMC103GP-SFP present the following features:
► 3 x 10/100/1000BASE-T RJ45 ports (ports 1-3 support IEEE 802.3at PoE+ power supply, auto MDI/MDI-X)
► 1×SFP optical port , supports 100Base-FX or 1000Base-X dual-mode automatic detection
► Wide range 12~48VDC power input , built-in power boost function
► PoE power budget : 90W (48VDC), 90W (24VDC), 60W (12VDC)
► Full/half duplex self-adaptation and automatic negotiation support ensure efficient and stable network
► Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to reduce power consumption
► IP40 grade aluminum alloy housing , durable and with excellent anti-interference performance
► Supports DIN rail and wall mounting , adapting to various deployment methods
► Industrial grade wide temperature design -40°C to 75°C for harsh environments
Mini Industrial Solar Power PoE Switch Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
4 Mbit |
|
Switch Fabric: |
12Gbps |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3) |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
<95W (Non-PoE<6W) |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Ethernet LINK Status |
|
FX: |
Fiber LINK Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.3Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Mini Industrial Solar Power PoE Switch Ordering Information
|
Model |
Description |
|
LNK-IMC103GP-SFP |
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 12~48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |
Mini Industrial Solar Power PoE Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go
to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
