| Type of Extender: | Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender | Input Signals:: | HDMI |
|---|---|---|---|
| Dimension (WxDxH):: | 2.24 x 0.6 x 0.55 in (57x16x14mm) | Weight:: | 0.1 kg / 0.22 lb |
| Operation Voltage:: | 5V DC | Power Supply:: | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
| Transmission Rate: | 10.2Gbps(3.4Gbps/CH) | Transmission Distance: | OM3 Multi Mode, up to 984ft (300M) |
| 강조하다: | Uncompressed 4K HDMI Extender,300m 4K HDMI Extender,Video Conference Solution HDMI Extender |
||

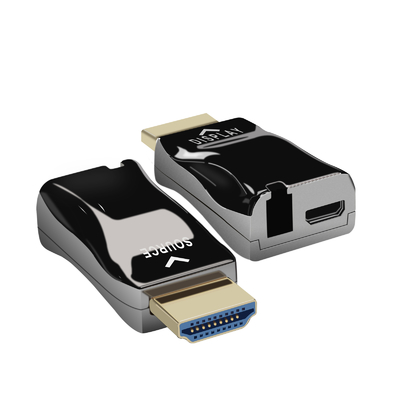

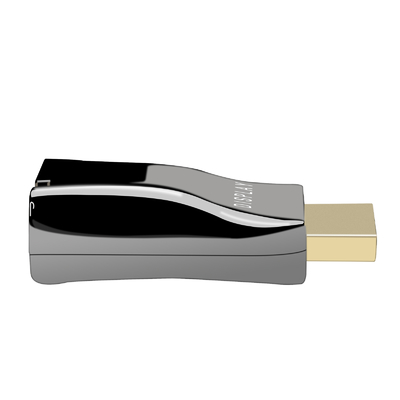

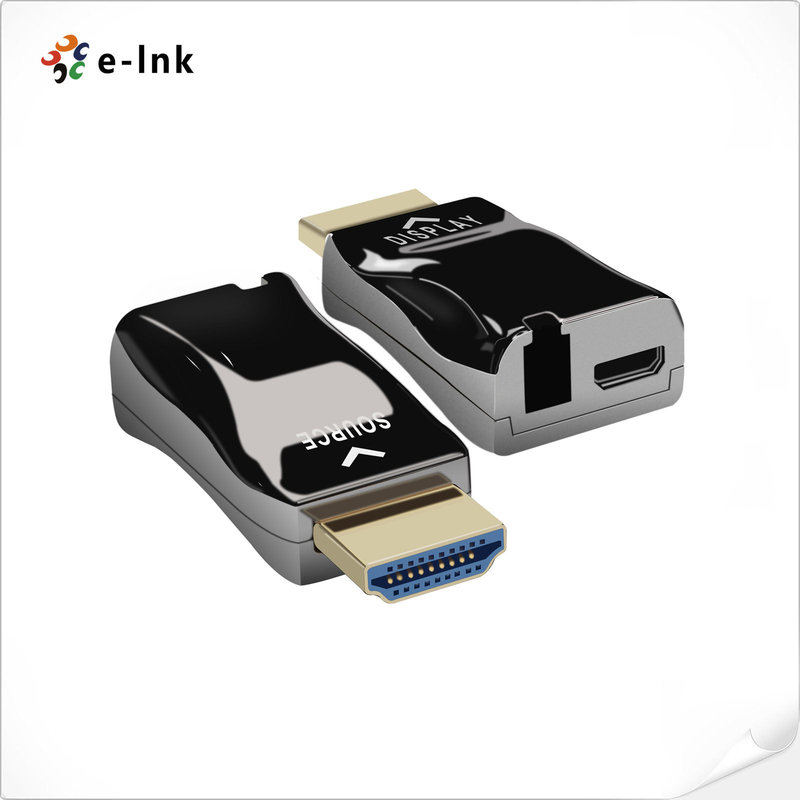

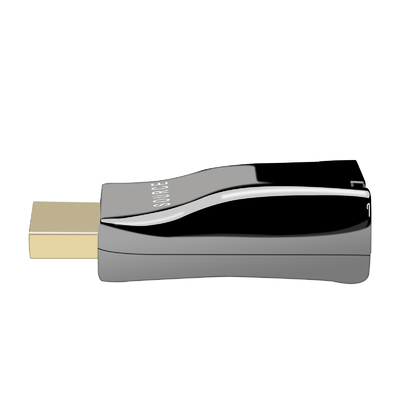

The LNK-107M is a compact, plug-and-play 4K/30Hz HDMI fibre extender using single-core
multimode fibre. It delivers uncompressed 4K video up to 300 metres (984 feet) with zero latency.
Its all-fibre design eliminates EMI/RFI interference to ensure crystal-clear signal integrity
for large-screen displays, conference rooms and home cinemas. This ultra-compact extender set (Tx+Rx),
which is compliant with HDMI 1.4 and RoHS, converts signals to 10Gbps optical data, making it perfect for
interference-free 4K AV distribution.
Supports HDMI video up to 4K@30Hz resolution
Plug-and-play design with no settings or adjustments required
Utilizes WDM technology to transmit high-definition audio and video over a single OM3 multimode optical fiber
Supports transmission distances up to 300 m with OM3 multimode fiber
Equipped with standard HDMI 1.4 connector for wide compatibility
Integrated USB connector for power supply
Low power consumption — only the RX module (display side) requires external power
Hot-pluggable for easy installation and replacement
TMDS signal transmission via multimode optical fiber ensures excellent anti-interference performance
Uses compact, reliable LC optical connector
|
Type of Extender |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender |
|
Input Signals |
HDMI |
|
Signal Support |
HDMI 1.4 HDMI format standard |
|
Video Support |
4K@30Hz/1080p/1080i/720p |
|
Audio Support |
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
|
Website Specifications |
Color space 444, 420, 400 |
|
Fiber Connector |
1 x LC Connector |
|
Transmission Rate |
10.2Gbps(3.4Gbps/CH) |
|
Transmission Distance |
OM3 Multi Mode, up to 984ft (300M) |
|
Operating Temperature |
-20°C to + 70°C |
|
Storage Temperature |
-40°C to + 85°C |
|
Humidity |
to 90% RH (non-condensing) |
|
Safety Approvals |
CE, RoHS, FCC |
|
Dimension (WxDxH) |
2.24 x 0.6 x 0.55 in (57x16x14mm) |
|
Weight |
0.1 kg / 0.22 lb |
|
Operation Voltage |
5VDC |
|
Operation Current |
TX+RX: 75mA |
|
Power Supply |
Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
|
Note |
The module does not support HDCP and EDID transparent transmission |
|
Model |
Description |
|
LNK-107M |
Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
