| PoE Standard: | IEEE 802.3af/at/bt Power over Ethernet | Power Output: | 40W 24VDC (Terminal Block) |
|---|---|---|---|
| Power Consumption: | 45W Max | Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg | PWR: | 24VDC Power OUT |
| 강조하다: | Industrial 24V PoE Splitter,IP Cameras PoE Splitter,Plug Play Installation PoE Splitter |
||
Industrial Gigabit PoE Splitter Overview
The LNK-INS901-24V Series is an industrial-grade Gigabit Power over Ethernet (PoE) splitter
that delivers both data (via RJ45) and 24V power (via screw terminals) to non-PoE devices.
This product is compatible with IEEE 802.3af/at/bt PoE switches, thus eliminating the need
for separate power wiring while maintaining full Gigabit speeds up to 100 metres.
This robust splitter is designed for tool-free, plug-and-play installation, ensuring seamless
integration with LNK-INJ-48-95W PoE injectors. It is ideally suited for use with IP cameras,
wireless access points, and industrial IoT devices in challenging environments.
Industrial Gigabit PoE Splitter Features
Separates power and data from a PoE input source

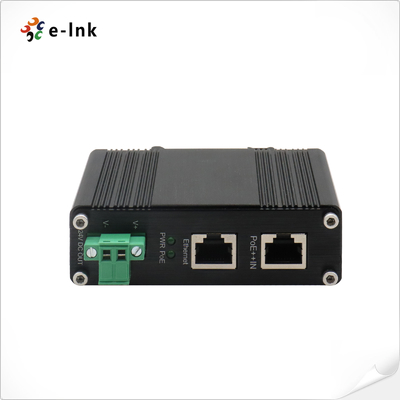

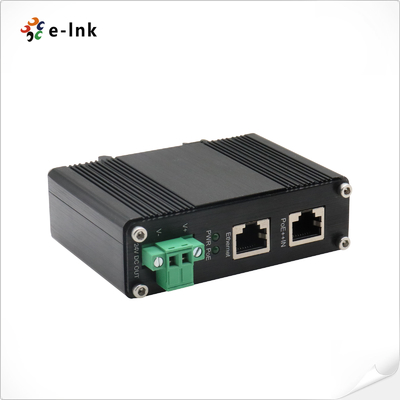

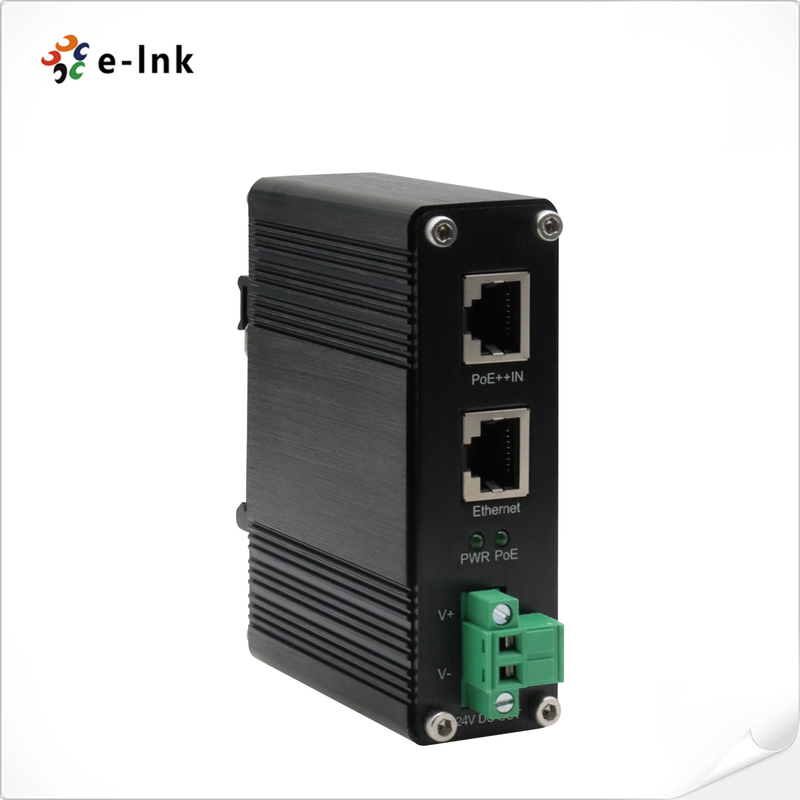

1× RJ45 PoE port (Data & Power In) and 1× RJ45 port (Data Out)
1× 24V DC output via 2-pin terminal block
Compliant with IEEE 802.3af/at/bt (PoE++) standards
Supports 10/100/1000Base-T Ethernet
Transmission distance up to 100 meters
Short-circuit protection for power output
IP40-rated rugged metal housing , fanless design for reliable operation

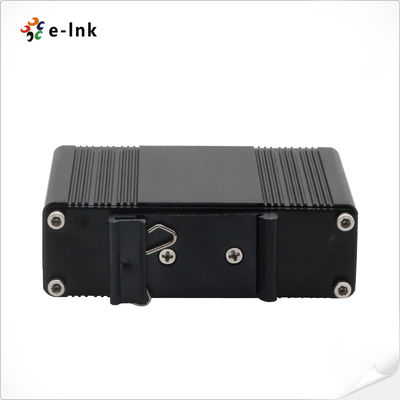

Supports DIN-rail and wall-mount installation
Equipped with LED indicators for PoE and diagnostics
Wide operating temperature range: -40°C to +80°C (-40°F to +176°F)
Industrial Gigabit PoE Splitter Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (24VDC) (Vary on device’s power requirement; cannot be over 40 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
40W 24VDC (Terminal Block) |
|
Power Consumption: |
45W Max. |
|
LED Indicators: |
|
|
PWR: |
24VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
|
Model |
Description |
|
LNK-INS901-24V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 40W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
