| Input Power:: | 12~48V DC on 4-pin female M12 A-Coding | Power Consumption:: | 95W Max |
|---|---|---|---|
| Standard：: | IEEE802.3af/at | Port：: | M12 connector (8-pin female M12 A-coding) |
| Dimension(WxDxH):: | 95 x 70 x 30 mm | Weight:: | 0.25Kg |
| 강조하다: | Wide Voltage PoE Injector,90W PoE Injector,12-48V DC PoE Injector |
||
EN50155 Industrial PoE Injector with M12 Connector Overview
The E-link EN50155 Compliant PoE Injector is a robust, industrial-grade power solution that has been
designed to meet the high demands of transportation applications, including those in rolling stock,
railway systems and vehicle networks. This IEEE 802.3bt-compliant injector delivers up to 90W of PoE++
power through a 1-port 10/100/1000/2.5G/5G Base-T(X) interface with M12 connectors for vibration-resistant
connectivity. This product features intelligent Power over Ethernet (PoE) detection and wide voltage input
(12-48 V DC). It automatically safeguards non-PoE devices while withstanding extreme environmental conditions,
such as shock, vibration and temperature fluctuations. This makes it ideal for mission-critical railway signalling,
onboard surveillance and mobile communications.
EN50155 Industrial PoE Injector with M12 Connector Features
Wide-range 12–48V DC power input for flexible deployment
Fully compliant with IEEE 802.3af/at/bt PoE standards
Supports 10/100/1000/2.5G/5G Base-TX for combined power and data output

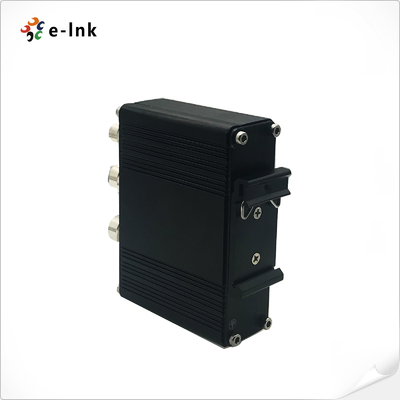

Compatible with DIN-rail and wall-mount installation methods

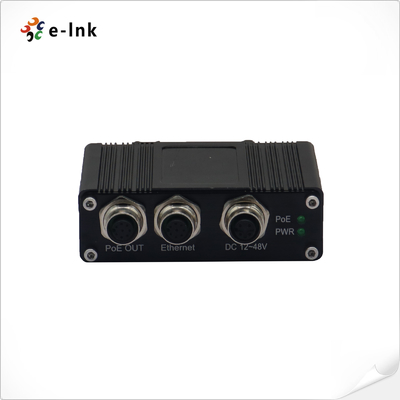

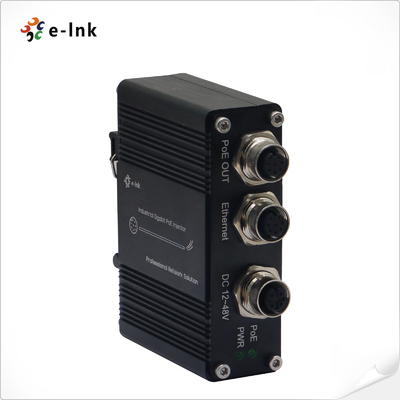

Equipped with Type-A M12 connectors for secure and robust connections
Compact design: 95 × 70 × 30 mm
Lightweight construction: 0.25 kg
Durable aluminum housing for enhanced protection
LED indicators for PoE status and diagnostics
Environmentally hardened for -40°C to +80°C (-40°F to +176°F) operation
EN50155 Industrial PoE Injector with M12 Connector Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
IEEE802.3bt Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
7,440,000pps (5Gbps) |
|
Cabling: |
10/100/1000/2.5G/5G Base-T |
|
Connector: |
2x M12 connector (8-pin female M12 A-coding) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48V DC on 4-pin female M12 A-Coding |
|
Power Consumption: |
95W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
Port: |
M12 connector (8-pin female M12 A-coding) |
|
Max. Power per Port: |
90W Max |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A, EN50155 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
EN50155 Industrial PoE Injector with M12 Connector Ordering Information
|
Model |
Description |
|
LNK-INJ501-90-M12 |
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G 90W M12 PoE Injector 12~48V DC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
EN50155 Industrial PoE Injector with M12 Connector Application
