제품 상세 정보:
결제 및 배송 조건:
|
| 포트: | 4 × RJ45 (10/100/1000Base-T POE+), 2 × 100/1000Base-X (SFP/SC/FC/ST) | 포: | IEEE802.3AF/AT, 포트 당 30W 최대, 총 132W 최대 |
|---|---|---|---|
| 전원 입력: | 48 ~ 57VDC, 중복 6 핀 말단 블록 | 작동 온도: | -40 ° C ~ 80 ° C |
| 치수 / 무게: | 150 × 115 × 30 mm / 0.5 kg | 포장: | 알루미늄, 팬이 없습니다 |
| 강조하다: | Industrial Gigabit PoE+ switch with SFP,DIN-Rail fiber optic switch,4-port PoE+ switch for harsh environments |
||

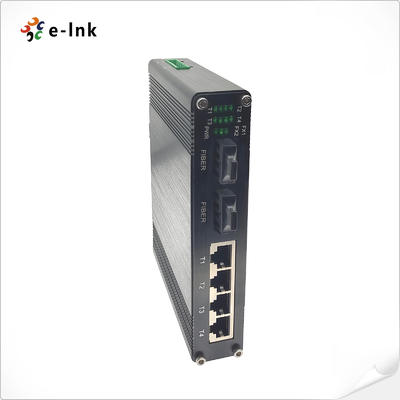

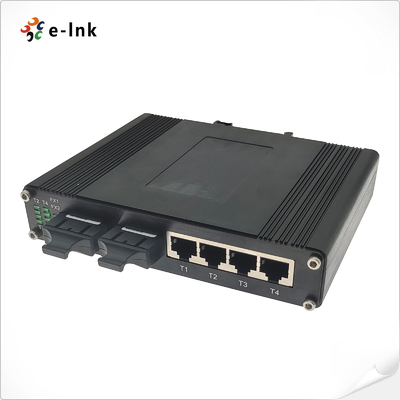

Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail
Overview
The LNK-IMC204GP Series is a ruggedized 6-port industrial PoE switch designed for
mission-critical applications. Featuring 4 Gigabit PoE+ RJ45 ports and 2 dual-speed fiber
uplinks (100/1000Base-X), it ensures reliable high-bandwidth connectivity for IP cameras,
wireless APs, and remote devices. With redundant power inputs, wide temperature tolerance
(-40°C~80°C), and hardened aluminum housing, this switch is ideal for harsh industrial,
surveillance, and outdoor networking environments.
Features
4× PoE+ Gigabit Ports delivering up to 30W per port (IEEE802.3at)
2× 100/1000Base-X fiber uplinks with SFP/SC/FC/ST options
High reliability with redundant 48~57VDC power input & overload protection
Rugged design: -40°C to 80°C operating range, fanless aluminum housing
Supports jumbo frames (9K Bytes) and 1M buffer for smooth data forwarding
DIN-Rail & Wall-mount options for flexible industrial deployment
MTBF >200,000 hours, ensuring long-term stable operation
Compliant with EMC/EMI industrial standards (EN, IEC certifications)
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size: |
2048 MAC Addresses |
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
132W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
30W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
SFP: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 30 mm |
|
Weight: |
0.5Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
Application
