| 포트: | 4 × 10/100/1000Base-T RJ45 (POE ++), 2 × 100/1000Base-X 섬유 | 전원 입력: | 48–57VDC, 중복 터미널 블록 |
|---|---|---|---|
| 주택: | 견고한 알루미늄 케이스 | 설치: | Din-Rail / Wall-Mount |
| 치수: | 150 × 115 × 30 mm | 인증: | ISO9001, EN55022, IEC61000-4-2/3/4/5/6/8 |
| 강조하다: | Industrial 4-Port PoE++ switch,Hardened Gigabit Ethernet switch,90W PoE++ SFP switch |
||

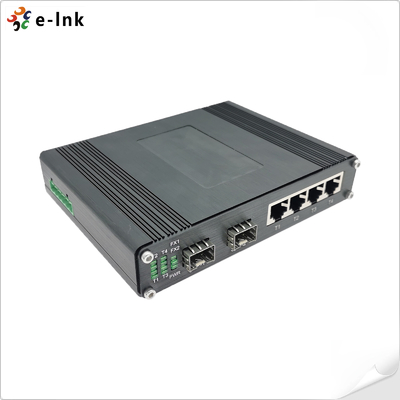

Industrial 4-Port 802.3bt 90W PoE++ + 2-Port SFP Hardened Gigabit Switch
Overview
The LNK-IMC204GP90 Series is a compact yet powerful industrial-grade PoE++ switch,
designed to deliver up to 90W per port for high-power devices such as PTZ cameras,
wireless access points, and industrial IoT equipment. With dual 100/1000Base-X fiber ports,
wide operating temperature, and redundant power design, it ensures reliable, high-speed
networking in mission-critical environments.
Features
High-Power PoE++ – Supports IEEE 802.3bt, up to 90W per port (360W total)
Flexible Fiber Uplink – 2× 100/1000Base-X (SFP/SC/FC/ST optional)
Rugged Design – Aluminum housing, -40°C to 80°C wide temperature range
Reliable Operation – Redundant 48–57VDC power inputs with overload protection
Enhanced Performance – 9K jumbo frames, 1Mbit buffer, store-and-forward switching

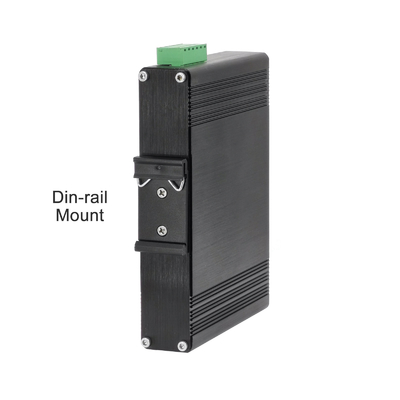

Easy Deployment – DIN-Rail / Wall-mount installation for industrial settings
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size: |
2048 MAC Addresses |
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
360W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
90W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
SFP: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 30 mm |
|
Weight: |
0.5Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
