제품 상세 정보:
결제 및 배송 조건:
|
| 처리 유형: | 상점과 포장 | 커넥터: | 4 x rj45 |
|---|---|---|---|
| 광학 포트: | 2 x 100/1000Base-FX (SFP, SC, FC, ST 옵션) | 작동 온도: | -40 ° C ~ 80 ° C (-40 ° F ~ 176 ° F) |
| 입력 전원: | 48 ~ 57V DC, 중복 전력 (6 핀 단자 블록) | 치수 (WXDXH): | 150 x 115 x 30 mm |
| 강조하다: | Industrial PoE++ switch with SFP,4-port PoE switch 360W budget,802.3bt Ethernet switch industrial grade |
||

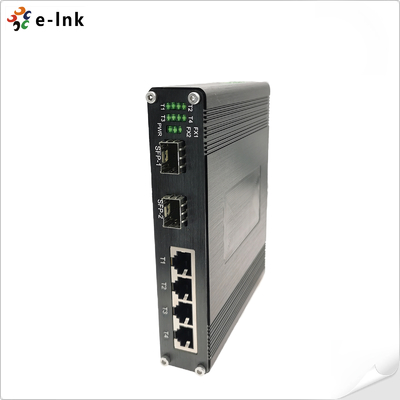

Industrial 4-Port 802.3bt PoE++ Switch with 2 SFP, 360W Power Budget
Overview
The LNK-IMC204GP100 Series is a rugged industrial-grade switch featuring 4 Gigabit
PoE++ ports (up to 100W each) and 2 flexible 100/1000Base-X uplink ports. Designed for
harsh environments, it delivers high-power PoE for IP cameras, wireless APs, and other
demanding devices while ensuring reliable fiber uplink connectivity. With a wide temperature
range (-40°C to 80°C), redundant power inputs, and robust aluminum housing, this switch is
an ideal solution for mission-critical industrial and surveillance networks.
Features
4x 10/100/1000Base-T PoE++ Ports, up to 100W per port, total 360W budget
2x 100/1000Base-X uplinks (SFP/SC/FC/ST optional) for flexible fiber expansion
Supports IEEE 802.3af/at/bt PoE standards for diverse powered devices
Wide operating temperature from -40°C to 80°C for harsh environments
Redundant 48–57VDC power input with overload and reverse polarity protection
Compact aluminum enclosure with DIN-Rail/Wall-mount installation
Energy Efficient Ethernet (EEE) reduces power consumption during low traffic
MTBF >200,000 hrs, ensuring long-term network reliability
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size: |
2048 MAC Addresses |
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57V DC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
360W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
100W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
SFP: |
FX1, FX2 |
|

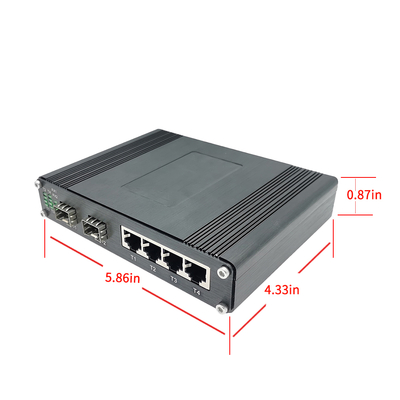

Dimensions (WxDxH): |
150 x 115 x 30 mm |
|
Weight: |
0.5Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
