| 포트: | 10 × 10/100/1000Base-T RJ45 | 전원 입력: | 역 극성 보호 기능으로 중복성 12–48VDC |
|---|---|---|---|
| 전력 소비: | <10w> | MTBF: | > 200,000 시간 |
| 주택: | 소형 알루미늄, IP40 더러움, 95 × 88 × 46mm | 설치: | Din-Rail / Wall-Mount |
| 강조하다: | Mini industrial Gigabit Ethernet switch,10-port rugged Ethernet switch,Compact Gigabit switch for extreme temperatures |
||

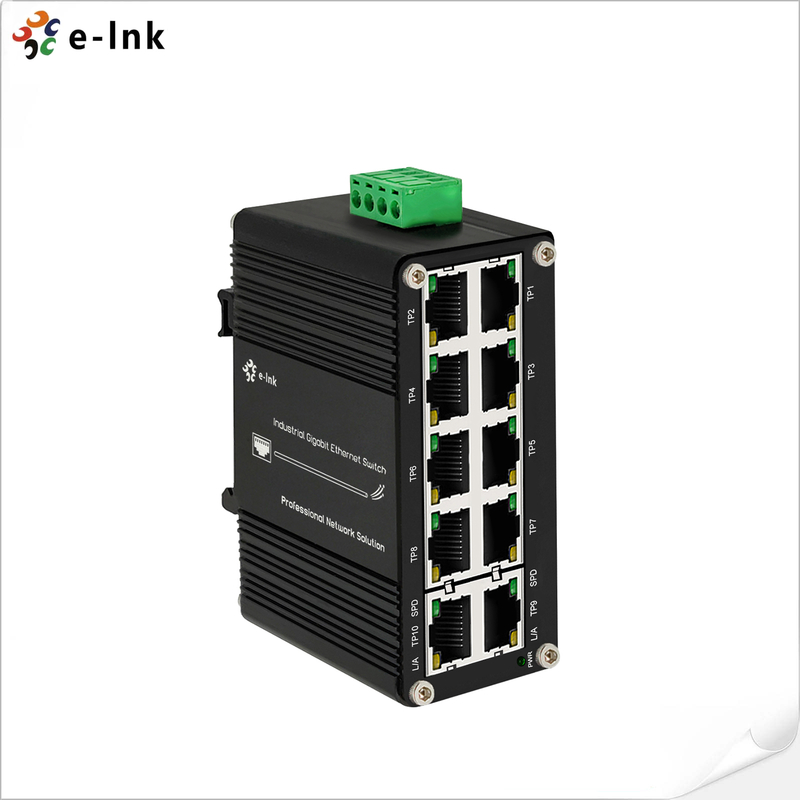

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C
Overview
The LNK-IMC010G Series is a compact 10-port Gigabit industrial Ethernet switch designed
for demanding environments. With wide voltage input, IP40-rated metal housing, and reliable
operation in extreme temperatures, it ensures stable performance in industrial automation,
transportation, and surveillance networks.
Features
10 Gigabit RJ45 Ports with auto-MDI/MDI-X for flexible connectivity
Wide 12~48VDC power input with redundant protection design
Industrial-grade rugged case with IP40 dustproof protection
Reliable in harsh environments: -40°C to 80°C operating range
High-performance switching with 20Gbps non-blocking fabric
Energy-efficient IEEE 802.3az compliant design
Easy installation via DIN-Rail or wall-mount options
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
9216bytes |
|
MAC Address Table: |
4K entries |
|
Switch Fabric: |
20Gbps/non-blocking |
|
Switch Throughput (packet per second) |
14.88Mpps@64bytes |
|
Connector: |
10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC Redundant power with polarity reverses protection function |
|
Power Consumption: |
<10W |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC010G |
Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
Application

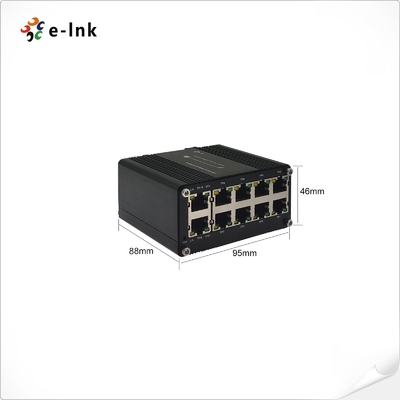

Dimension & Size
