| POE 표준: | IEEE 802.3AF/AT/BT (포트 당 최대 95W) | POE 예산: | 총 360W 총 (4 개의 동력 포트) |
|---|---|---|---|
| 인터페이스: | 4 × POE RJ45 + 1 × RJ45 업 링크 + 2 × 100/1000 SFP 슬롯 | 전원 입력: | 48–57VDC 역 극성 보호 기능을 갖춘 중복 |
| 작동 온도: | -40 ° C ~ 80 ° C (Fanless) | 주택 및 장착: | IP40 알루미늄, Din-Rail |
| 강조하다: | Industrial 90W PoE++ switch,4-port Gigabit PoE switch,Industrial Ethernet switch with SFP |
||

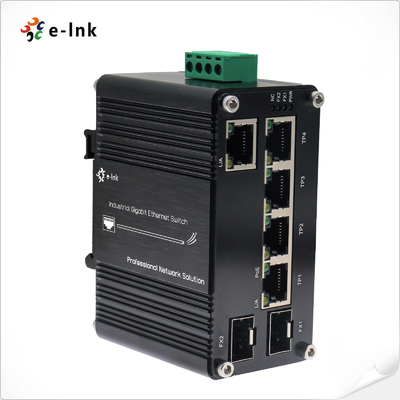

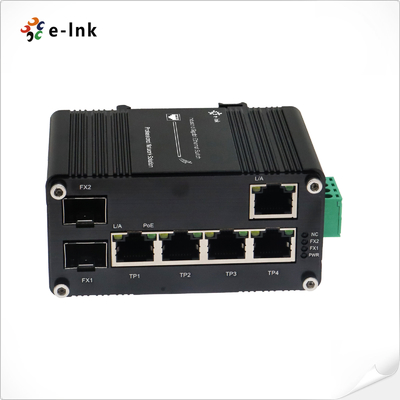

Industrial 4-Port 90W PoE++ Gigabit Switch with 1 RJ45 + 2 SFP -40~80°C
Overview
The LNK-IMC205GHP-SFP is a rugged industrial Gigabit switch featuring 4 high-power 90W
PoE++ ports, 1 Gigabit RJ45 uplink, and 2 dual-rate SFP slots for fiber connectivity. With up
to 360W total PoE budget and wide -40~80°C operating range, it is engineered for
power-hungry devices such as PTZ cameras, touch PCs, kiosks, and digital signage in
harsh industrial environments.
Features
4×90W PoE++ Ports (IEEE 802.3bt) with 360W total PoE budget
Flexible Uplinks: 1 Gigabit RJ45 + 2 SFP slots (100/1000 dual mode)
Ultra-High Power: Supports PTZ cameras, kiosks, signage & PoE lighting
Rugged Design: IP40 metal housing, fanless, DIN-Rail mount
Industrial-Grade: Operates from -40°C to 80°C, shock & vibration resistant
High Reliability: Redundant 48–57VDC input with reverse polarity protection
Non-Blocking Switching: 14Gbps fabric, 10K jumbo frames, 2M buffer
Certified Safety: CE, FCC, RoHS, ISO9001, with ESD/EFT/Surge protection
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
|
IEEE 802.3af Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
10Kbytes |
|
MAC Address Table: |
4K |
|
Switch Fabric: |
14Gbps/non-blocking |
|
Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Network Cables |
Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
|
Interface |
|
|
Connector: |
5 x RJ45 (4-Port 802.3at PoE Out) |
|
Optical Port: |
2 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
Port: |
RJ45 |
|
Power Pin Assignment: |
Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 360-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC (Terminal Block) |
|
Power Consumption: |
382W Max. (PoE in use) |
|
<5W (PoE not in use) |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (LxWxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
LED Indicators: |
|
|
PWR: |
Power |
|
L/A: |
Link/Activity |
|
PoE: |
PoE Status |
|
FX1/FX2: |
SFP Fiber Link Status |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC205GHP-SFP |
Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately |

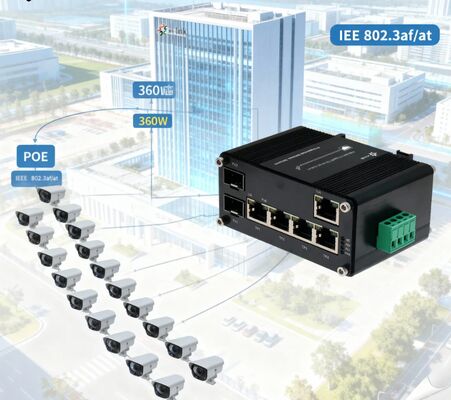

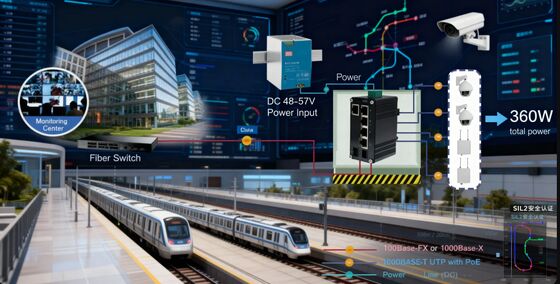

Application
Dimensions
