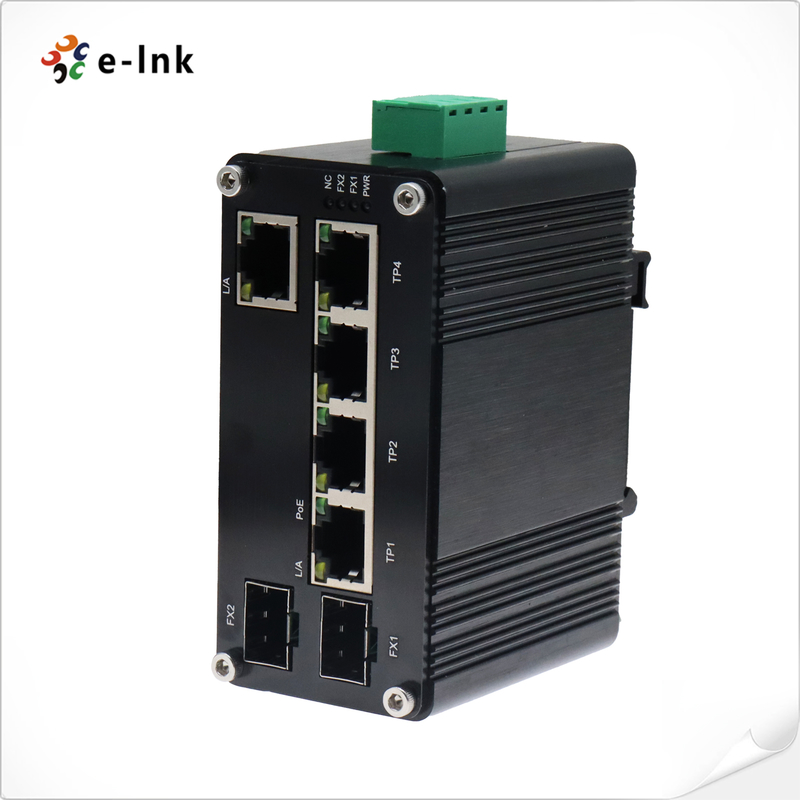

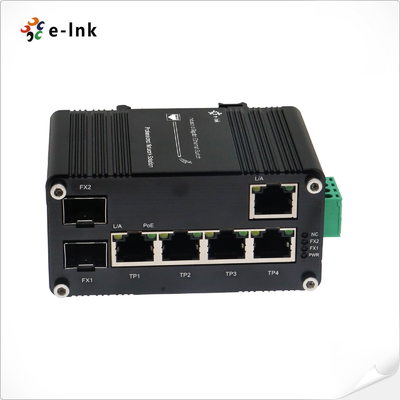

Industrial 7-Port PoE Powered Gigabit Switch with PoE Passthrough SFP
Overview
The E-link LNK-IMC205GPD-SFP is a compact industrial-grade PoE powered switch that
combines both Powered Device (PD) and Power Sourcing Equipment (PSE) in one unit.
Featuring a 95W PoE++ input, four PoE output ports (71W budget), and dual 100/1000X
SFP slots, it extends power and data to remote IP devices where traditional power sources
are unavailable. With PoE passthrough technology, it eliminates rewiring costs and doubles
transmission distance up to 200m, making it ideal for surveillance, wireless APs, and edge
devices in harsh environments.
Features
PoE Passthrough Design – 1x IEEE 802.3bt PoE++ input, 4x PoE outputs (71W total).
Fiber Uplink – 2x 100/1000X SFP slots for flexible long-distance networking.
Extended Reach – Doubles PoE transmission distance from 100m to 200m.
Rugged & Compact – IP40 aluminum case, fanless design, DIN-Rail mount.
Wide Temperature Support – Reliable operation from -40°C to 80°C.
Plug & Play – No AC adapter needed, powered via PoE injector or switch.
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
|
IEEE 802.3af Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
10Kbytes |
|
MAC Address Table: |
4K |
|
Switch Fabric: |
14Gbps/non-blocking |
|
Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Network Cables |
Twisted-pair: 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m
Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m/2km. 1000BASE-LX: 9/125μm single-mode cable, providing long distance of 2/10/20/40/80/120km (depending on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable for up to 2km (depending on SFP module) 9/125μm single-mode cable for 20/40/60/120km (vary on SFP module) |
|
Interface |
|
|
Connector: |
5 x RJ45 (1-Port PoE In, 4-Port PoE Out) |
|
Optical Port: |
2 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 71-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
Pass through PoE: 95W power input from a PoE injector or switch |
|
48~57VDC (Terminal Block) |
|
|
Power Consumption: |
<5W (Non-PoE) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (LxWxH): |
95 x 88 x 46mm |
|
Weight: |
300g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail |
|
LED Indicators: |
|
|
PWR: |
Power |
|
L/A: |
Link/Activity |
|
PoE: |
PoE Status |
|
FX1/FX2: |
SFP Fiber Link Status |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC205GPD-SFP |
Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► PoE Pass Through |
|
► Power Supply is to be purchased separately |

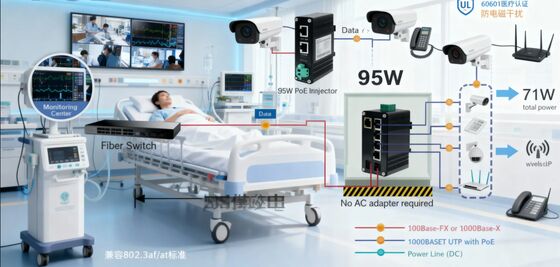

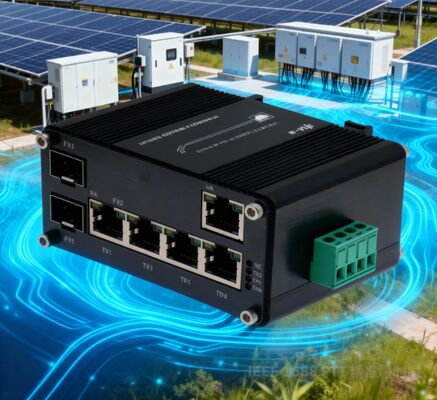

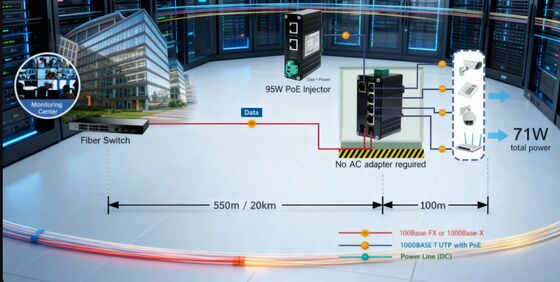

Application
Dimension
