제품 상세 정보:
결제 및 배송 조건:
|
| 유형: | 미니 산업 POE+ 기가비트 스위치 | 포트: | 8 × POE+ RJ45, 2 × 기가비트 RJ45 |
|---|---|---|---|
| POE 표준: | IEEE 802.3af/at, 포트 당 최대 30W | 작동 온도: | -40 ° C ~ 80 ° C, fanless |
| 주택: | IP40 알루미늄 케이스, Din-Rail Mountable | 인증: | CE, FCC, ROHS, IEC 표준 |
| 강조하다: | Mini Industrial PoE+ Ethernet Switch,8-Port DIN-Rail Ethernet Switch,Gigabit PoE Switch for Industrial Use |
||

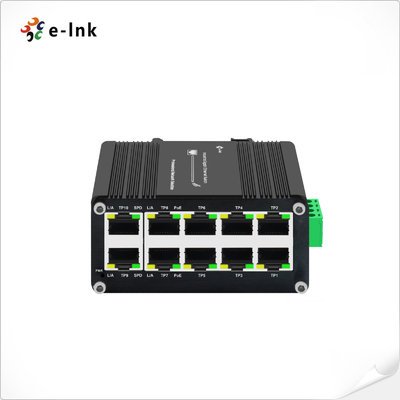

Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch DIN-Rail -40~80°C
Overview
The LNK-IMC010GP is a compact industrial Gigabit switch with 8 PoE+ RJ45 ports and 2
additional Gigabit RJ45 ports for uplinks. Delivering up to 240W PoE budget and fanless
operation, it ensures reliable power and data transmission for IP cameras, wireless APs, and
other powered devices in harsh environments. Its IP40 rugged metal housing and wide -40°C
to 80°C operating range make it ideal for industrial automation, traffic control, and outdoor
applications.
Features
8× 10/100/1000T PoE+ ports + 2× 10/100/1000T uplink ports for flexible network deployment
Up to 240W PoE budget, supporting 30W per port for high-power devices
Fanless, ventilated design with IP40 metal housing for harsh industrial environments
Redundant 48~57VDC power input with reverse polarity & overload protection
IEEE 802.3x flow control & IEEE 802.3az EEE for energy-efficient operation
DIN-Rail mountable for compact installations
Surge, ESD, shock, vibration protection ensures robust industrial performance
Operating range: -40°C to 80°C, ideal for extreme conditions
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
2Mbits |
|
Packet Length: |
9216bytes |
|
MAC Address Table: |
4K entries |
|
Switch Fabric: |
20Gbps/non-blocking |
|
Switch Throughput (packet per second) |
14.88Mpps@64bytes |
|
Interface |
|
|
Connector: |
10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget |
|
Max. Number of Class 4 PDs |
8 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 100,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC Redundant power with polarity reverses protection function |
|
Power Consumption: |
<250W (Non-PoE<10W) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 88 x 46mm |
|
Weight: |
400g |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
|
PoE |
Max 30W per port |
|
Regulatory Approvals |
|
|
EMC |
CE (EN55032, EN55035) |
|
EMI |
FCC Part 15 Subpart B |
|
EMS |
EN61000-4-2 (ESD) EN61000-4-3 (RS) |
|
EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
|
EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11 |
|
|
Safety |
CE (EN60950-1) |
|
Surge Protection |
8KV for PoE, RJ-45 and SFP ports |
|
Shock |
IEC60068-2-27 |
|
Freefall |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
Ordering Information
|
Model |
Description |
|
LNK-IMC010GP |
Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed. |
|
Power Options |
► Power Supply is to be purchased separately |

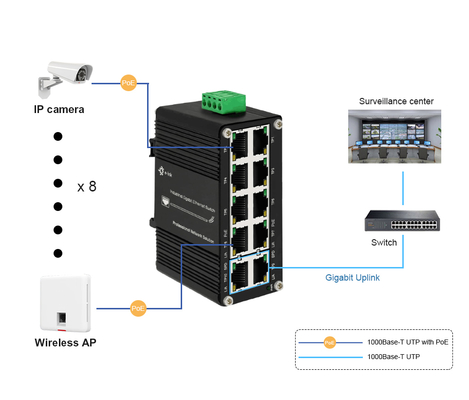

Application
Dimension
