제품 상세 정보:
결제 및 배송 조건:
|
| 전원 입력: | 12 ~ 48VDC (터미널 블록) | POE 표준: | IEEE802.3AF/AT, 포트 당 최대 60W 최대 |
|---|---|---|---|
| 이더넷 포트: | + 2 poe out의 2 개의 데이터 (Gigabit RJ45) | 처리량: | 10/100/1000base-t, 100m 최대 거리 |
| 설치: | Din-Rail / Wall-Mount | 포장: | 견고한 알루미늄, 0.26kg |

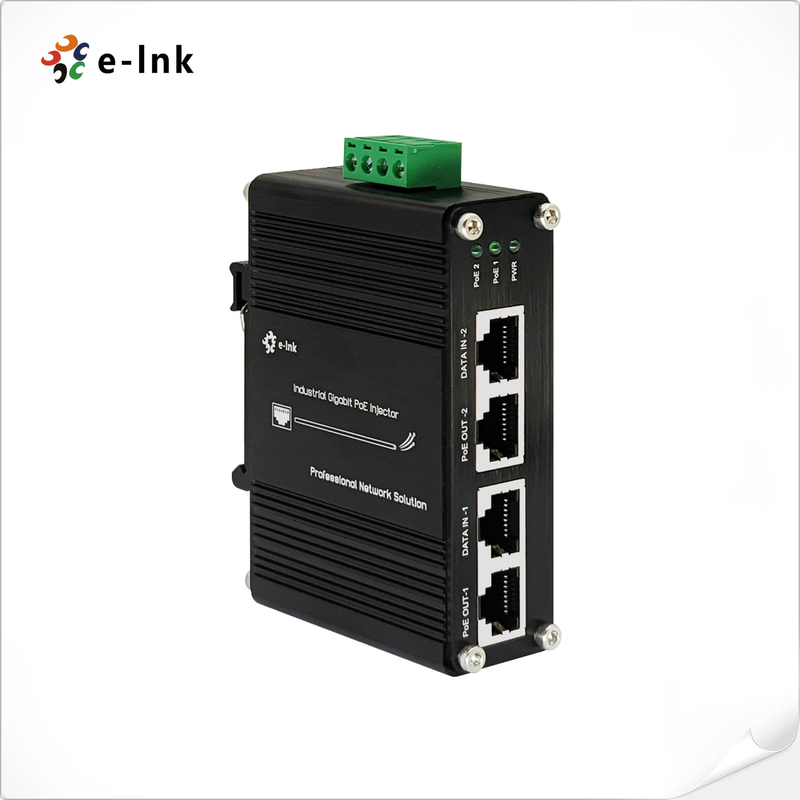

12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power
Overview
The LNK-INJ302 is a rugged 2-port Gigabit PoE+ injector designed for industrial
applications. It delivers up to 60W power per port with 12~48VDC input, ensuring reliable
connectivity for cameras, APs, and other powered devices in harsh environments.
Features
Dual PoE+ Ports – Supports up to 60W on one port, total budget ≤60W
Wide Power Input – Operates on 12~48VDC, ideal for field deployment
Industrial-Grade Design – Hardened aluminum casing with -40°C~80°C range
Flexible Installation – DIN-Rail and wall-mount options
Reliable Networking – Gigabit throughput with 100m Cat5e/6 support
Intelligent Power Delivery – IEEE802.3af/at compliant with diagnostic LEDs
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
4x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
70W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
60W Max (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.26Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
CE-EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ302 |
12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

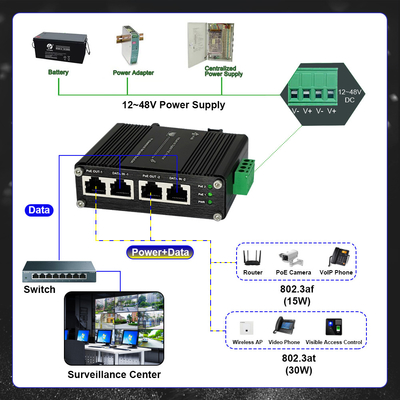

Application
