제품 상세 정보:
결제 및 배송 조건:
|
| 입력: | BNC 위의 1 Ｘ 12G SDI | 지원 해상도: | HDTV 4K*2K, 1080P, 1080I, 720P |
|---|---|---|---|
| 작동 온도: | -40C~85C | 차원 (LxWxH): | 80 Ｘ 40 Ｘ 20 (밀리미터) |
| 힘: | 5-15 VDC | 전력 소비: | 2W (최다) |
| 강조하다: | RS485 Support SDI To Fiber Converter,Audio SDI To Fiber Optic Converter,Tally SDI To Fiber Optic Converter |
||

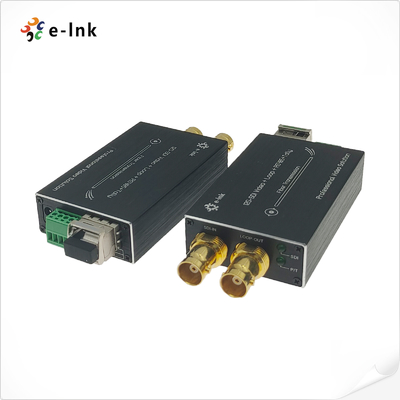

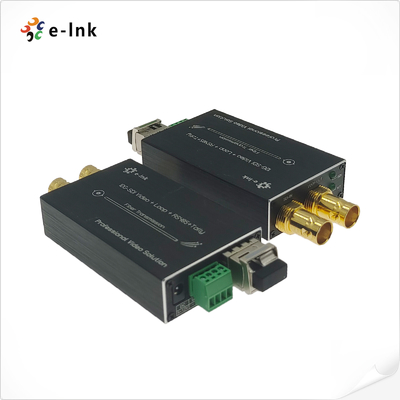

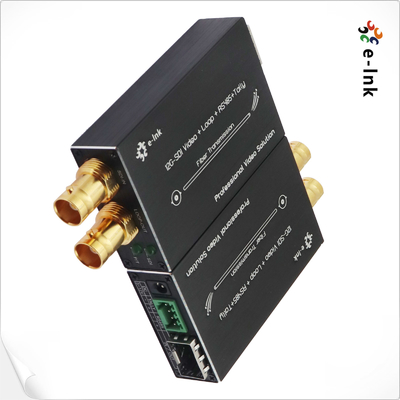

Mini 12G-SDI to Fiber Converter Overview
This mini 12G-SDI fiber optic converter supports simultaneous transmission of one channel of 12G video
(with embedded audio), one channel of tally signal, and one channel of reverse RS485 control signal over
a single optical fiber. It also features a 12G loop-out port for local monitoring.
The E-link 12G fiber optic video converter consists of a transmitter and a receiver, supporting HD video resolutions
such as 4K×2K (3840×2160@60Hz), 1080P, 1080I, and 720P. It is suitable for broadcast, studio, live broadcast,
and HD post-production.
Mini 12G-SDI to Fiber Converter Features
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or
Divide-by-1.001 Subrates and 270 Mbps
► Long transmission capability at least 10 km (6.2miles), up to 80 km
► Supports Tally and Backward RS485
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment;
► fiber optic WDM/CWDM/DWDM technique;
►Supports 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

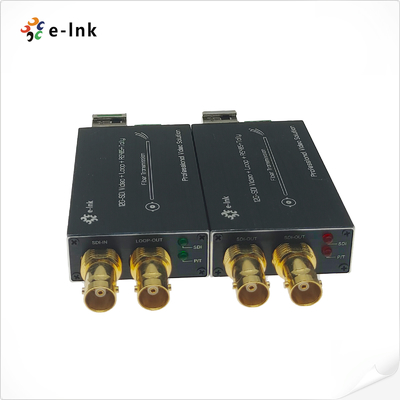

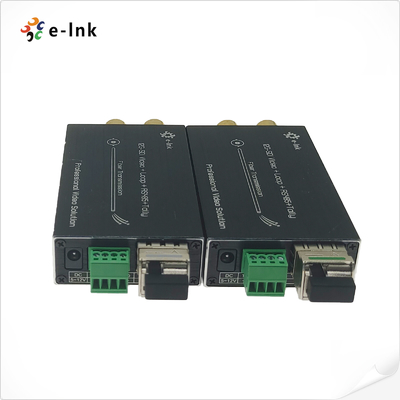

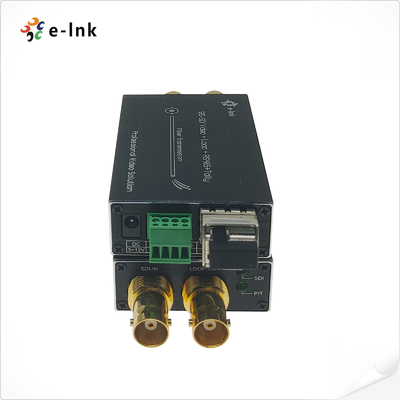

Mini 12G-SDI to Fiber Converter Panel & Interface
Mini 12G-SDI to Fiber Converter Features Technical Indexes
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible with DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Output | 1 x LC optical fiber |
| 1 x 12G-SDI loop-out on BNC | |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Output cable specification | ≤70m@12G SDI Belden 1694A |
| Data type | Backward Tally |
| Data type | Backward RS485 |
| Optical transmission bandwidth | 270MHz～12GHz |
| Power | 5-15 VDC |
| Power Consumption | 2 W (Max.) |
| Dimensions (LxWxH) | 80 x 40 x 20 (mm) |
| Storage Temperature | -40℃～80℃ |
| Operating Temperature | -40℃～85℃ |
Mini 12G-SDI to Fiber Converter Dimension & Size
Mini 12G-SDI to Fiber Converter Ordering Information
| Model | Description |
| LNK-M12G-1V1T1D-20 | Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
Mini 12G-SDI to Fiber Converter Application
