| Supported Resolution: | 3840×2160@60Hz, 1080P, 1080I, 720P | Optical Transmission Bandwidth: | 270MHz–12GHz |
|---|---|---|---|
| Ethernet: | 10/100/1000Mbps | Power: | 12VDC, 6W(Max.) |
| Dimensions: | 117×80×24mm | Operating Temperature: | -10℃–70℃ |
| 강조하다: | Backward RS485 SDI to Fiber Converter,4K 12G SDI to Fiber Converter,12G-SDI Fiber Converter |
||
4K 12G-SDI to Fiber Converter with Gigabit Ethernet and 2Ch Backward RS485
Overview
This 4K 12G-SDI to Fiber Converter enables high-quality, uncompressed video transmission
over long distances via optical fiber. It supports up to 3840×2160@60Hz resolution,
embedded 8-channel audio, 1Gbps Ethernet, and 2-channel backward RS485 data. Designed
for professional broadcast, video production, and security applications, it ensures stable
signal integrity with automatic cable equalization and integrated reclocking. Compatible
with 12G/6G/3G/HD/SD-SDI formats, it offers reliable performance for demanding
environments.
Features
Technical Indexes
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With DVB-ASI and AES10 (MADI) |
|
Input |
1 x 12G-SDI on BNC |
|
Output |
2 x FC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
|
≤60m@12G SDI Belden 1694A |
|
Ethernet |
10/100/1000Mbps |
|
Data type |
2Ch Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
12 VDC |
|
Power Consumption |
6 W (Max.) |
|
Dimensions (LxWxH) |
117 x 80 x 24 (mm) |
|
Operating Temperature |
-10℃～70℃ |
|
Storage Temperature |
-40℃～85℃ |
Ordering Information
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible With DVB-ASI and AES10 (MADI) |
|
Input |
1 x 12G-SDI on BNC |
|
Output |
2 x FC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
|
≤60m@12G SDI Belden 1694A |
|
Ethernet |
10/100/1000Mbps |
|
Data type |
2Ch Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
12 VDC |
|
Power Consumption |
6 W (Max.) |
|
Dimensions (LxWxH) |
117 x 80 x 24 (mm) |
|
Operating Temperature |
-10℃～70℃ |
|
Storage Temperature |
-40℃～85℃ |

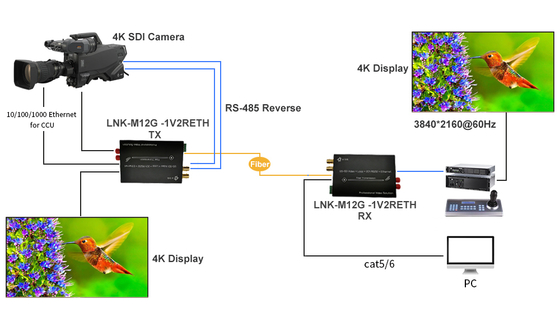

Application

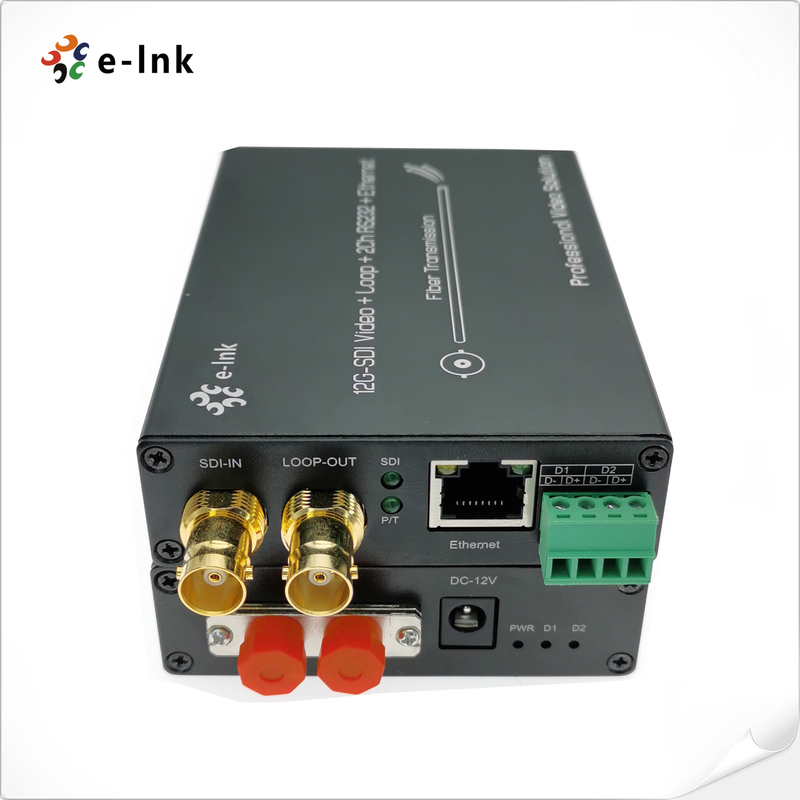

Panel
RS485 Connection
|
Pin |
- |
+ |
|
RS485 |
D- |
D+ |
