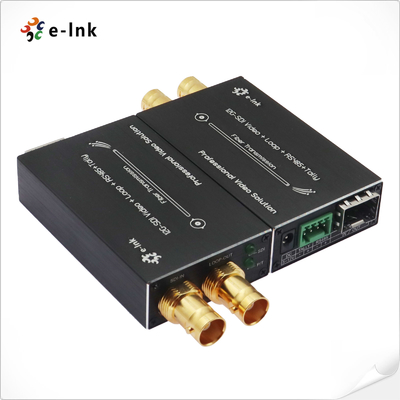

Mini 12G-SDI to Fiber Converter with Tally, RS485, and 4K Signal Loop Output
Overview
This mini 12G-SDI to Fiber Converter delivers uncompressed, broadcast-quality video
transmission over long distances, supporting resolutions up to 3840×2160@60Hz. It
features embedded 8-channel audio, integrated reclocking, Tally signal support, and
backward RS485 data transmission. With a compact design, LC fiber connector, and
12G-SDI loop-out, it ensures stable, high-speed performance for professional broadcast,
live production, and video transport applications.
Features
Compact mini design with LC fiber connector for easy installation
Supports 12G/6G/3G/HD/SD-SDI formats and up to 4K×2K (3840×2160@60Hz) resolution
Integrated reclocking for stable, lossless signal transmission
Supports Tally signal and backward RS485 data communication
Long-distance optical transmission up to 80 km
Technical Indexes
|
Formats |
Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Compatible |
Compatible with DVB-ASI and AES10 (MADI) |
|

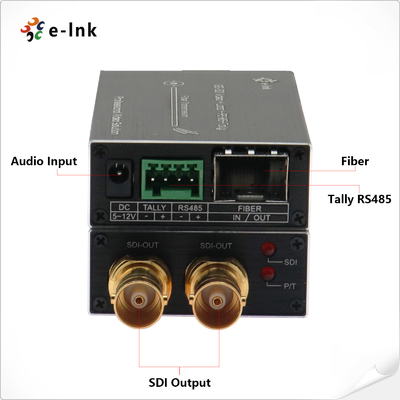

Input |
1 x 12G-SDI on BNC |
|
Output |
1 x LC optical fiber |
|
1 x 12G-SDI loop-out on BNC |
|
|
Supported Resolution |
HDTV 4K*2K, 1080P, 1080I, 720P |
|
Resolution range |
3840*2160@60Hz |
|
Input cable specification |
≤70m@12G SDI Belden 1694A |
|
Output cable specification |
≤70m@12G SDI Belden 1694A |
|
Data type |
Backward Tally |
|
Data type |
Backward RS485 |
|
Optical transmission bandwidth |
270MHz～12GHz |
|
Power |
5-15 VDC |
|
Power Consumption |
2 W (Max.) |
|
Dimensions (LxWxH) |
80 x 40 x 20 (mm) |
|
Storage Temperature |
-40℃～80℃ |
|
Operating Temperature |
-40℃～85℃ |
Ordering Information
|
Model |
Description |
|
LNK-M12G-1V1T1D-20 |
Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs |
Application
